| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2ED2181S06FXUMA1
IC HALF BRIDGE GATE DRIVER 650V
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 2.5A, 2.5A |
|

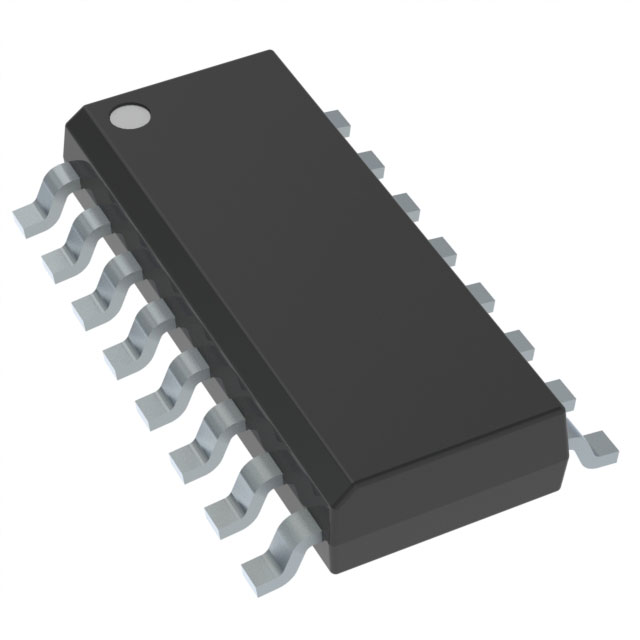

2EDF7175FXUMA2
IC GATE DRVR HALF-BRIDG DSO16
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 1A, 2A |
|
IR2101STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IR2132SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Not For New Designs | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
2ED2109S06FXUMA1
IC HALF BRIDGE GATE DRIVER 650V
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 290mA, 700mA |
|
IRS2124SPBF
HIGH SIDE DRIVER IC
|
- | Bulk | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 500mA, 500mA |
|
IR2102PBF
IR2102 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

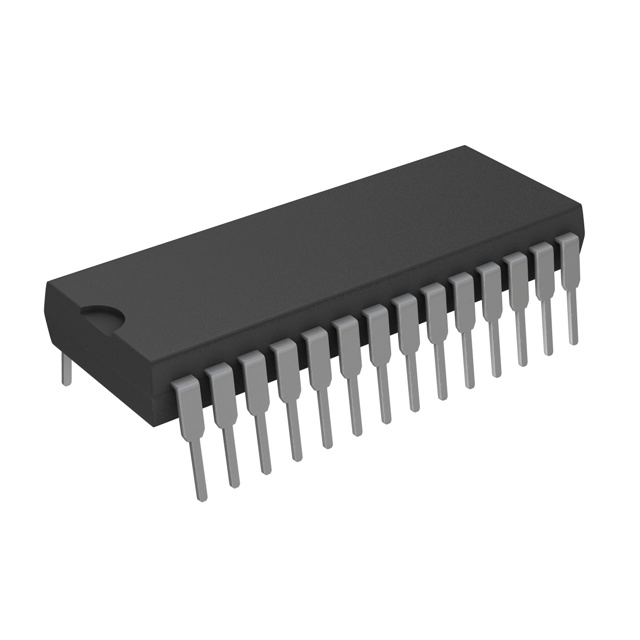

IR2132PBF
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Bulk | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR21084SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS21850SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|

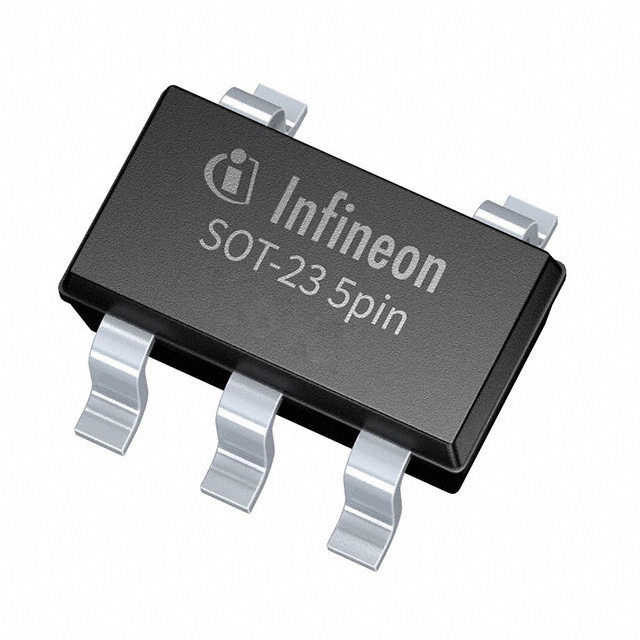

1EDN7511BXTSA1
IC GATE DRVR LOW-SIDE SOT23-6
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 4A, 8A |
|
IRS21856STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3.5V | 500mA, 500mA |
