| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS24531DSTRPBF
IC GATE DRVR FULL-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Discontinued at | Full-Bridge | Synchronous | 1 | N-Channel MOSFET | 10V ~ 15.6V | 4.7V, 9.3V | 180mA, 260mA |
|

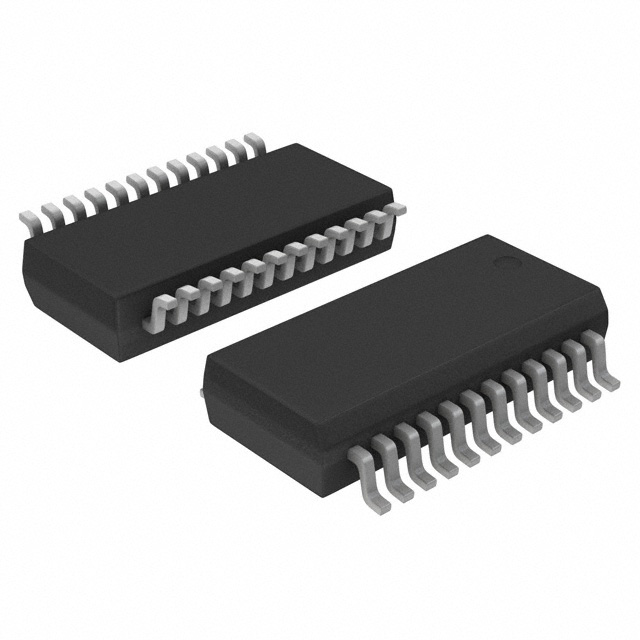

IR2114SSPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
IR2125SPBF
IC GATE DRVR HIGH-SIDE 16SOIC
|
- | Tube | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A |
|
IR2233SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA |
|
IR2132JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Bulk | Not For New Designs | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR7184SPBF
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

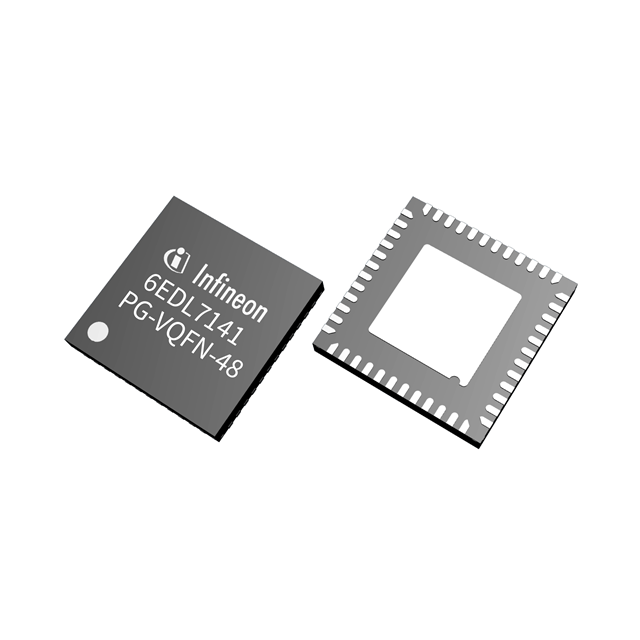

6EDL7141XUMA1
3-PHASE SMART GATE DRIVE CONTROL
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 3 | N-Channel MOSFET | 5.5V ~ 60V | 0.8V, 2V | 1.5A, 1.5A |
|
IRS2005SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS4427PBF
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A |
|
IR2132JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS2101STRPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
98-0247
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
