| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

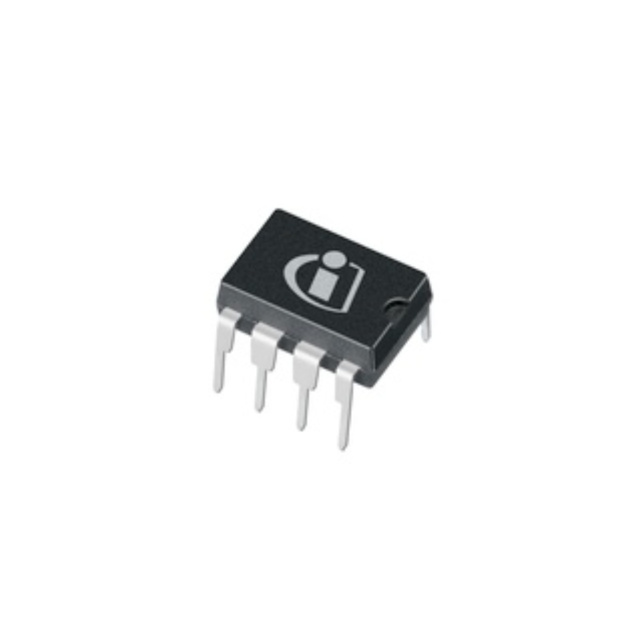

IR2153C
IC GATE DRIVER SMD
|
* | Tube | Obsolete | - | - | - | - | - | - | - |
|
1EDL8011XUMA1
CONTROLLER
|
- | Tray | Active | - | - | - | - | - | - | - |
|
IRS2184PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Bulk | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
AUIRS2112S
IC GATE DRVR HALF-BRIDGE 16SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3V ~ 20V | 6V, 9.5V | 290mA, 600mA |
|

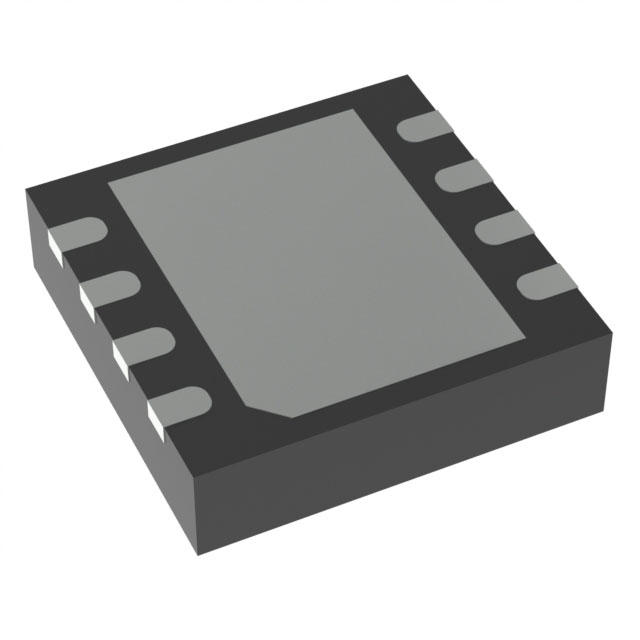

2EDL8014GXUMA1
INT. POWERSTAGE/DRIVER PG-VDSON-
|
EiceDRIVER™ | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 5A, 6A |
|
IR21844
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

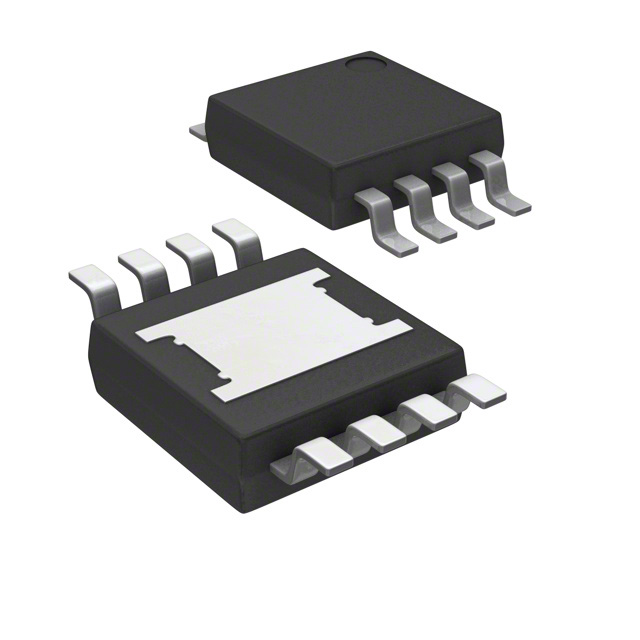

2EDN7424RXUMA1
IC GATE DRVR LOW-SIDE 8TSSOP
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 0.8V, 2.3V | 4A, 4A |
|
|
2EDL8033G4CXTMA1
INT. POWERSTAGE/DRIVER
|
EiceDRIVER™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 3A, 6A |
|
AUIRS21811S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
|
6EDM2003L06F06X1SA1
IC GATE DRVR BARE DIE
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|

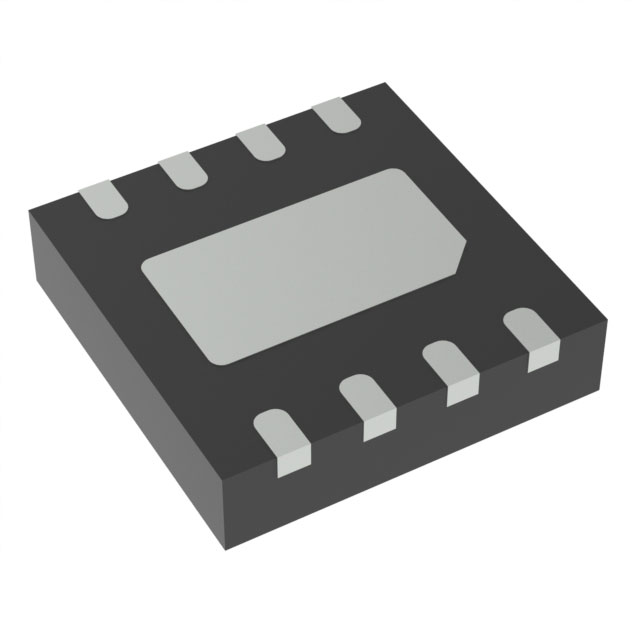

2EDN8523GXTMA1
IC GATE DRVR LOW-SIDE 8WSON
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 1.1V, 1.98V | 5A, 5A |
|
IR2117PBF
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
