| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
AUIRS2110STR
HIGH AND LOW-SIDE DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 2 | - | 3V ~ 20V | - | - |
|
IRS21091PBF
IRS21091 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS26310DJTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR21362STRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2111SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 250mA, 500mA |
|
IR4428STRPBF
IC DRIVER DUAL LOW SIDE 8SOIC
|
- | Cut Tape (CT) | Obsolete | Low-Side | - | 2 | - | 6V ~ 20V | - | - |
|
IR2136STR
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2011S
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A |
|

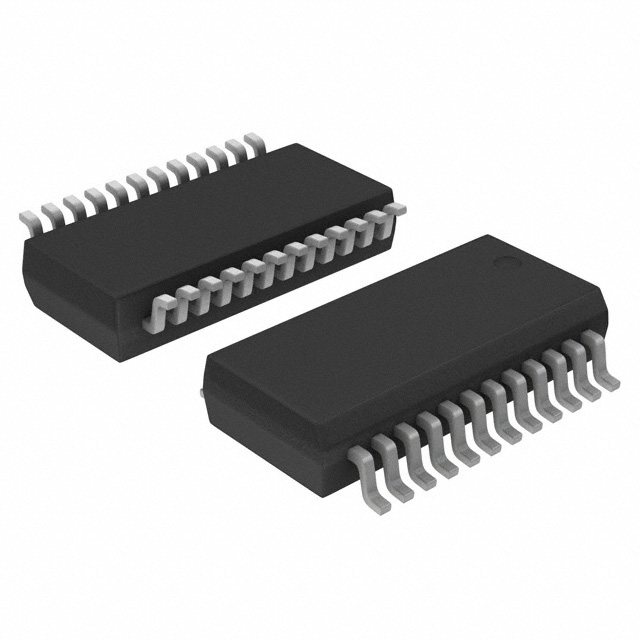

IR22141SSPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
IR2131SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Bulk | Obsolete | Half-Bridge | Independent | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

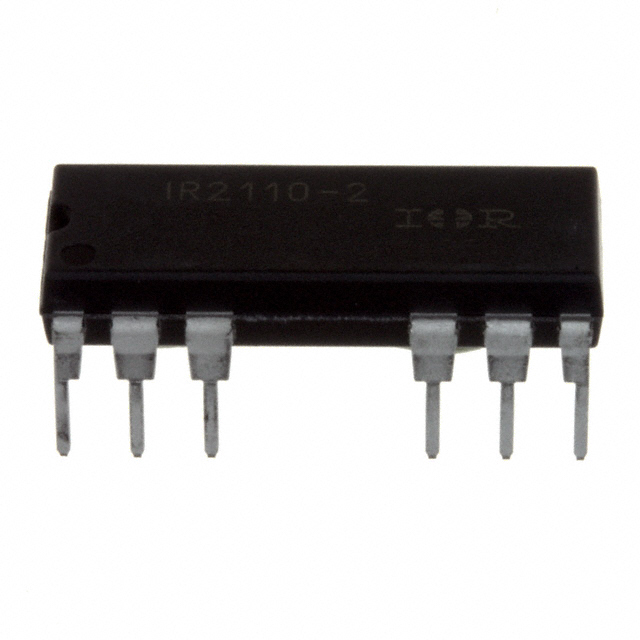

IR2110-2PBF
IC GATE DRVR HALF-BRIDGE 16DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|
IR21064PBF
IC GATE DRVR HI/LOW SIDE 14DIP
|
- | Bulk | Obsolete | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
