| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21362SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR21363JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Bulk | Discontinued at | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|

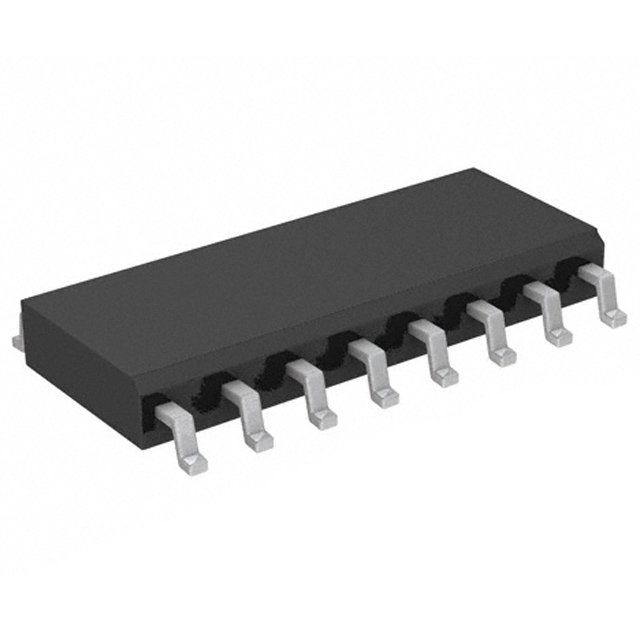

IRS21853SPBF
IC GATE DRVR HIGH-SIDE 16SOIC
|
- | Tube | Obsolete | High-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.6V, 3.5V | 2A, 2A |
|
IRS2336JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2135SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

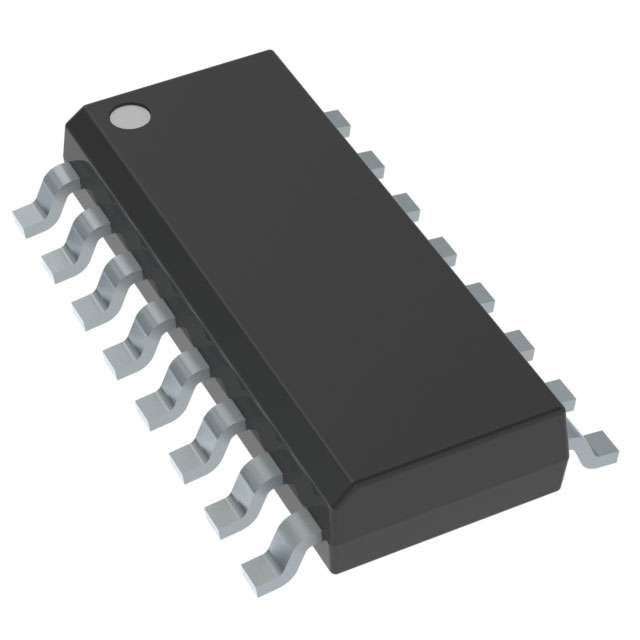

2EDF7275FXUMA2
IC GATE DRVR HALF-BRIDG DSO16
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
|
IRS26310DJPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR3535MTRPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 7V | - | -, 4A |
|

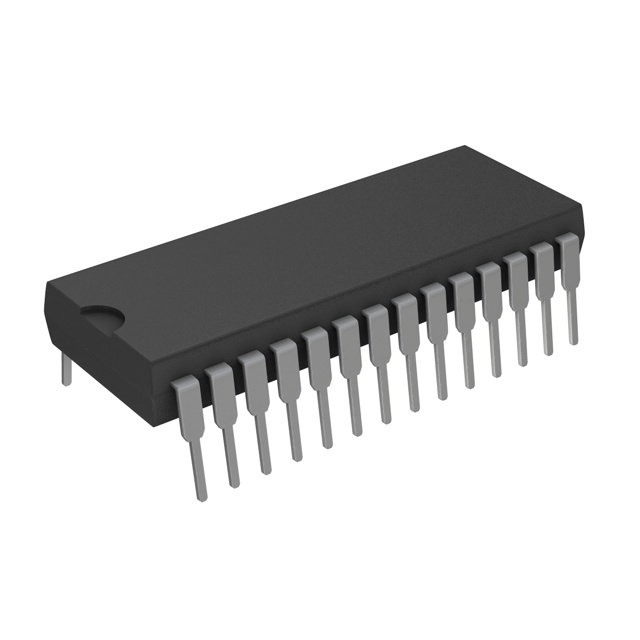

IR21362PBF
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2086STRPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 9.5V ~ 15V | - | 1.2A, 1.2A |
|
2EDN7524FXTMA1
IC GATE DRVR LOW-SIDE DSO8-60
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
|

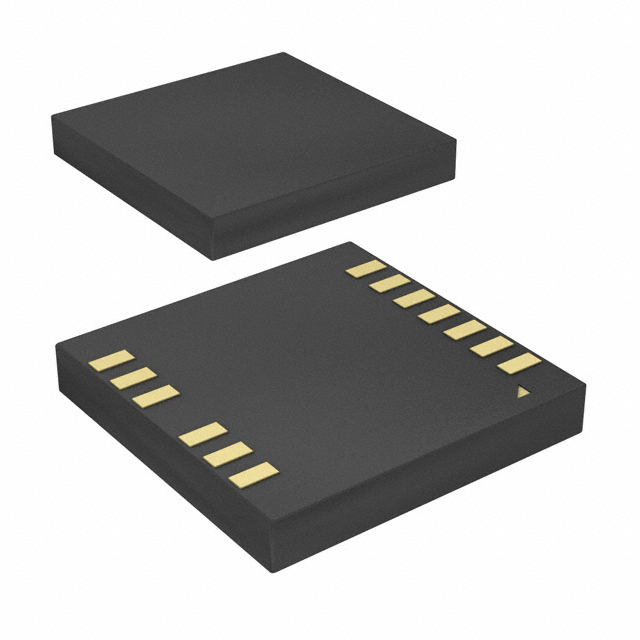

2EDF7275KXUMA1
IC GATE DRVR HALF-BRIDG TFLGA-13
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
