| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

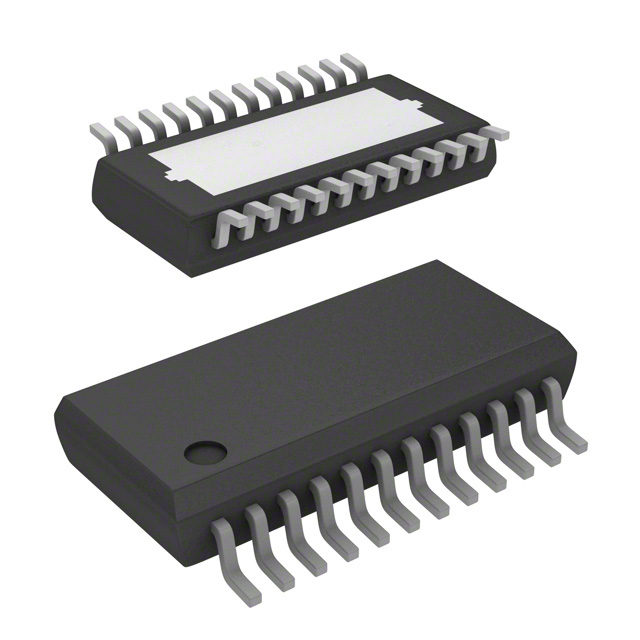

TLE7182EMXUMA1
IC GATE DRVR HALF-BRIDGE SSOP-24
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 7V ~ 34V | 1V, 2V | - |
|
IR2152S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 125mA, 250mA |
|
2EDL05I06BFXUMA1
IC GATE DRVR HALF-BRIDGE DSO8
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT | 10V ~ 20V | 1.1V, 1.7V | 500mA, 500mA |
|
IR21834STR
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR7304STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA |
|
IR2127SPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Active | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IR21091PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
AUIRS4427STR
IC DRIVER LOW SIDE DUAL 8SOIC
|
- | Bulk | Obsolete | Low-Side | - | 2 | - | 6V ~ 20V | - | - |
|
IRS53365DC
IC GATE DRVR
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|
IRS24531DSTRPBF
IC GATE DRVR FULL-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Discontinued at | Full-Bridge | Synchronous | 1 | N-Channel MOSFET | 10V ~ 15.6V | 4.7V, 9.3V | 180mA, 260mA |
|
IR21271SPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Active | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IR2113SPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
