| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
6ED003L06FXUMA1
6ED003L06 - HALF-BRIDGE BASED MO
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | 165mA, 375mA |
|
IRS26302DJPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Bulk | Discontinued at | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2102
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

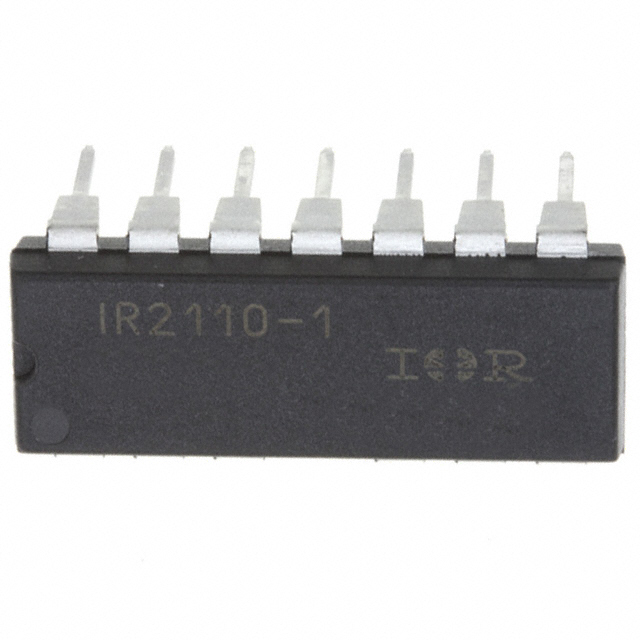

IR2110-1
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|

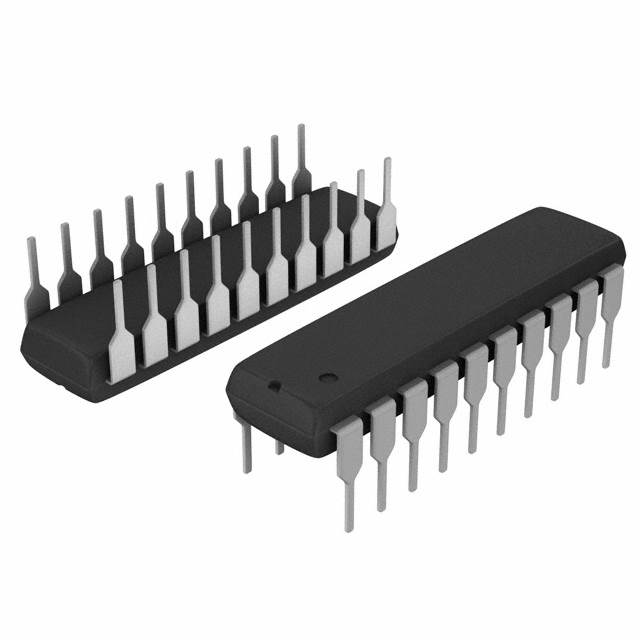

IR1176
IC GATE DRVR LOW-SIDE 20DIP
|
- | Tube | Obsolete | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 5.25V | - | 4A, 4A |
|
2ED21844S06JXUMA1
IC HALF BRIDGE GATE DRIVER 650V
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 2.5A, 2.5A |
|
IR21814S
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR25600PBF
IC GATE DRVR LOW-SIDE 8DIP
|
- | Bulk | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
|
IRS21856SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3.5V | 500mA, 500mA |
|
IR2101STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

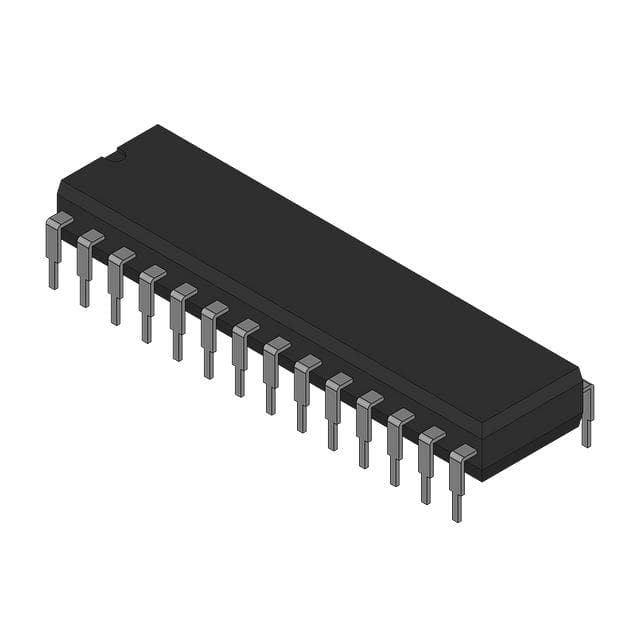

IR2131PBF
HALF BRIDGE BASED MOSFET DRIVER,
|
- | Bulk | Active | Half-Bridge | Independent | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR2011STR
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A |
