| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2725M/NOPB
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 7V | 0.8V, 2V | 1.2A, 1A |
|
UC2706N
IC GATE DRVR LOW-SIDE 16DIP
|
- | Bulk | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A |
|
|
UC3715DG4
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Discontinued at | Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 7V ~ 20V | 0.8V, 2V | 500mA, 1A |
|

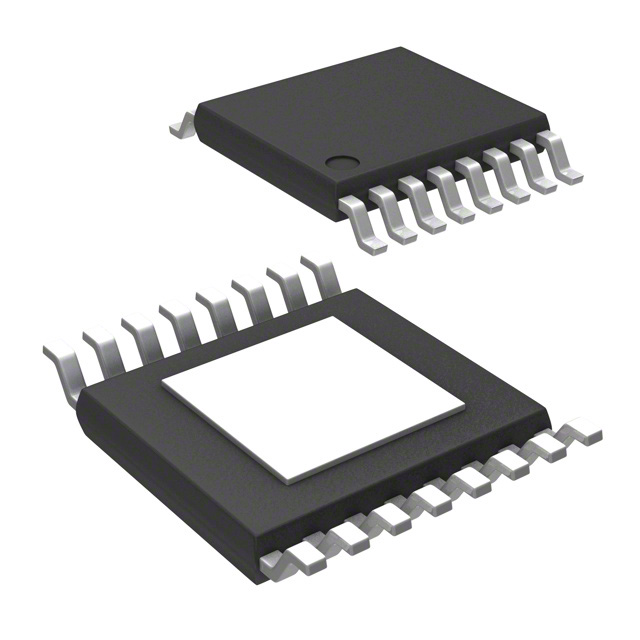

TPS2839PWPR
IC GATE DRVR HALF-BRIDG 16HTSSOP
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15V | 1V, 2V | 4A, 4A |
|
UCC27524DGNR
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.3V | 5A, 5A |
|
|
UCC27210D
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 2.4V, 5.8V | 4A, 4A |
|
TPS2828DBVR
IC GATE DRVR LOW-SIDE SOT23-5
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 14V | 1V, 4V | 2A, 2A |
|
TPS2811PWLE
NAND GATE BASED MOSFET DRIVER
|
- | Bulk | Active | Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 4V ~ 14V | - | 2A, 2A |
|
UCC27223PWPR
IC GATE DRVR HALF-BRIDG 14HTSSOP
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 3.7V ~ 20V | 1.55V, 2.25V | 4A, 4A |
|
UC1709J
UC1709 INVERTING HIGH-SPEED MOSF
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
UCC27714D
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 18V | 1.2V, 2.7V | 4A, 4A |
|
|
UCC27321DGNR
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 15V | 1V, 2V | 9A, 9A |
