| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2128S
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Obsolete | High-Side or Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 250mA, 500mA |
|
IRS2332STRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

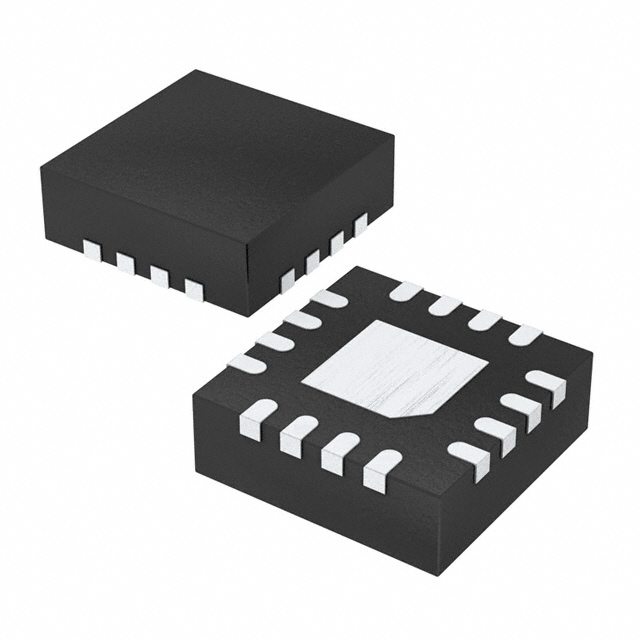

IRS2113MPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A |
|
IR21094S
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
98-0343
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR4426PBF
IC GATE DRVR LOW-SIDE 8DIP
|
- | Bulk | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
|

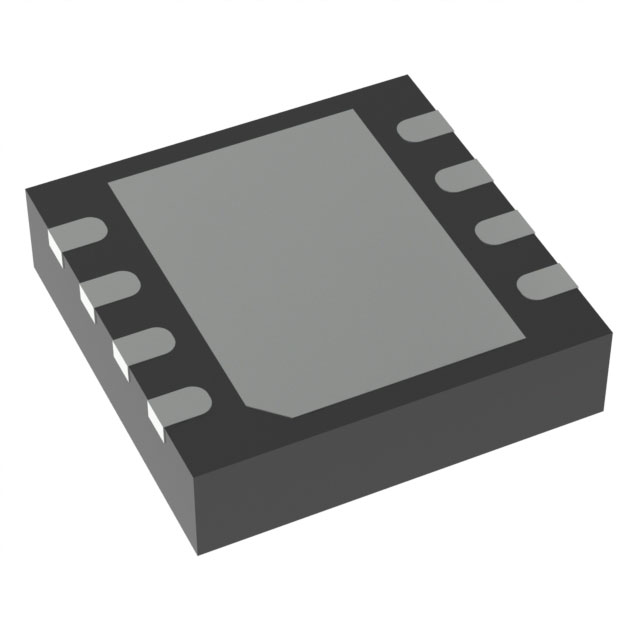

2EDL8123GXUMA1
INT. POWERSTAGE/DRIVER
|
EiceDriver™ | Tape & Reel (TR) | Active | High-Side and Low-Side | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 3A, 3A |
|
IRS2332DJPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
1EDN8511BXTSA1
IC GATE DRV HALF BRD/LOW SOT23-6
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Half-Bridge, Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 4A, 8A |
|
2ED21824S06JXUMA1
IC HALF BRIDGE GATE DRIVER 650V
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 2.5A, 2.5A |
|
IR21364STRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR21844PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Last Time Buy | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
