| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UC2715N
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Obsolete | Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 7V ~ 20V | 0.8V, 2V | 500mA, 1A |
|
UCC27516DRST
IC GATE DRVR LOW-SIDE 6SON
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | 1V, 2.4V | 4A, 4A |
|
LM5113TME/NOPB
IC GATE DRVR HALF-BRIDGE 12DSBGA
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.76V, 1.89V | 1.2A, 5A |
|
UCC27200ADRCT
IC GATE DRVR HALF-BRIDGE 9VSON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 3V, 8V | 3A, 3A |
|

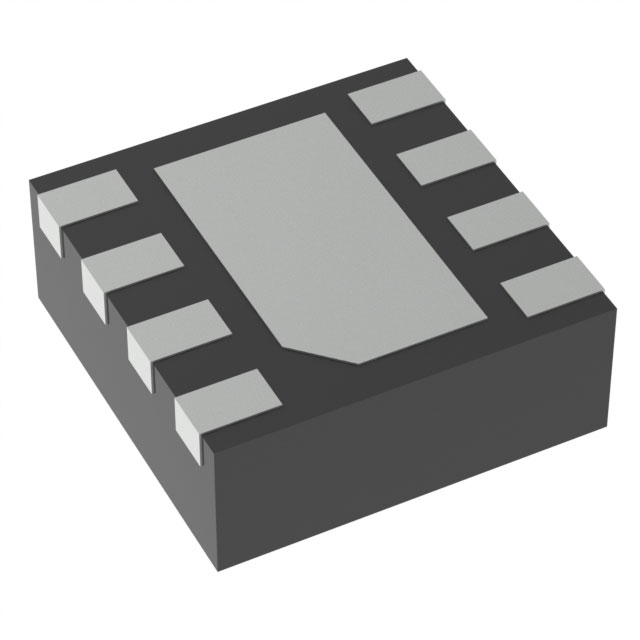

UCC27614DSGR
IC ISOLATION
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 16V | - | 10A, 10A |
|
TPS2830DRG4
IC GATE DRVR HIGH-SIDE 14SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 15V | - | 2.7A, 2.4A |
|
UCC27518AQDBVRQ1
IC GATE DRVR LOW-SIDE SOT23-5
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 4A, 4A |
|
LM5109MA/NOPB
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1A, 1A |
|

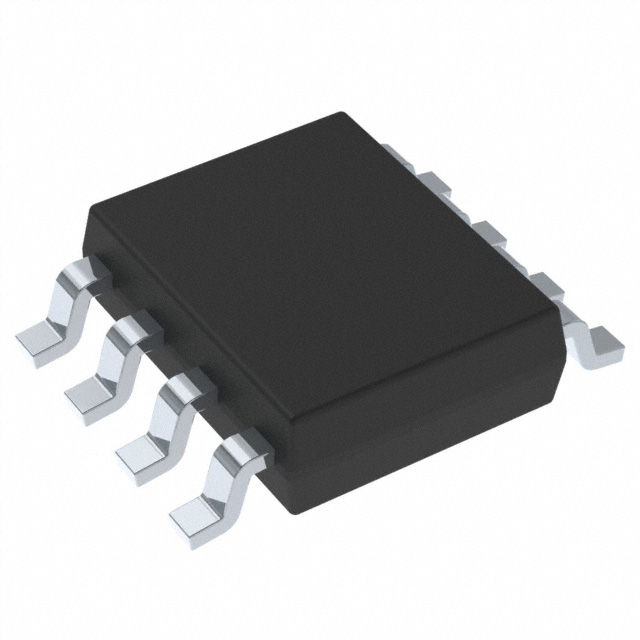

UCC27201DDA
IC GATE DRVR HALF-BRIDGE 8SOPWR
|
- | Tube | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 0.8V, 2.5V | 3A, 3A |
|
|
UC2705D
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Bulk | Active | Low-Side | Single | 1 | N-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A |
|

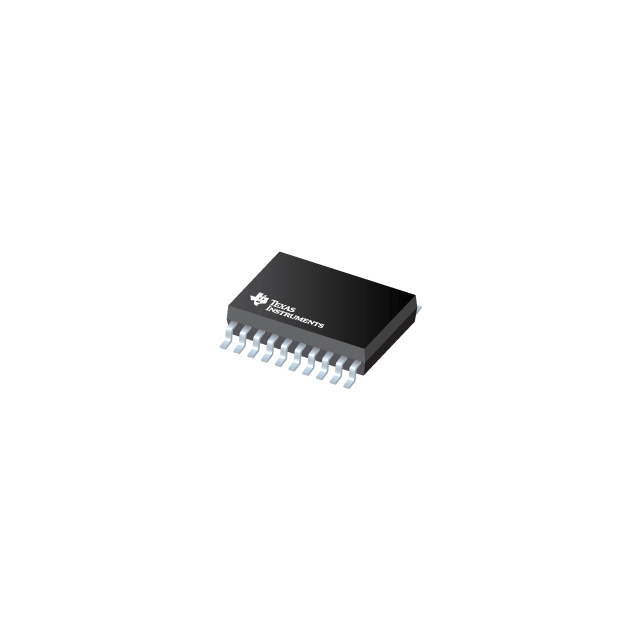

DRV8300NPWR
100-V MAX SIMPLE 3-PHASE GATE DR
|
- | Tape & Reel (TR) | Active | High-Side and Low-Side | 3-Phase | 3 | N-Channel MOSFET | 5V ~ 20V | 0.8V, 2V | 750mA, 1.5A |
|
5962-8761901EA
UC1707 COMPLEMENTARY HIGH SPEED
|
* | Bulk | Active | - | - | - | - | - | - | - |
