| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21084STRPBF
HALF-BRIDGE BASED MOSFET DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2130PBF
IR2130S - GATE DRIVER
|
- | Bulk | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 420mA |
|

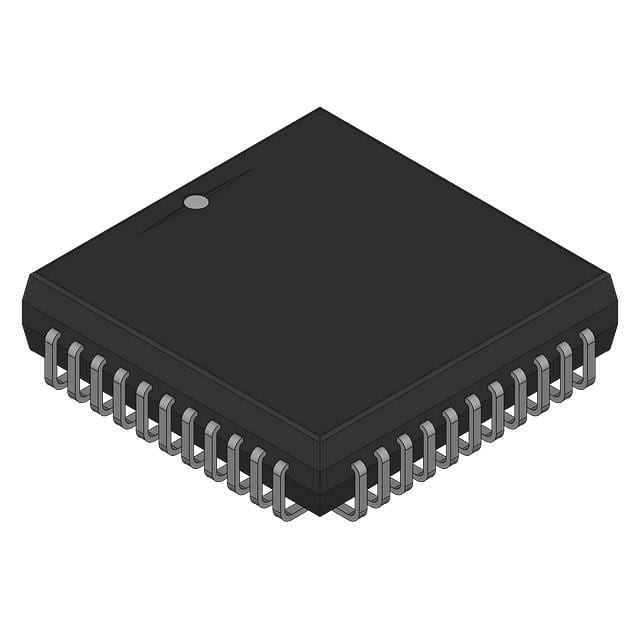

IR2131JTRPBF
IR2131J - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS21064PBF
IRS21064 - GATE DRIVER
|
- | Bulk | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS2336JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IRS21834PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Bulk | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|

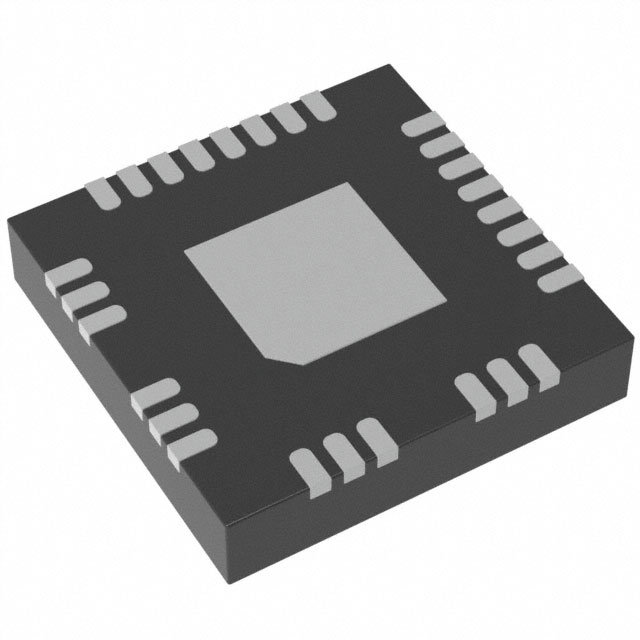

IRS2334MTRPBF
IC GATE DRVR HALF-BRIDGE 28MLPQ
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|

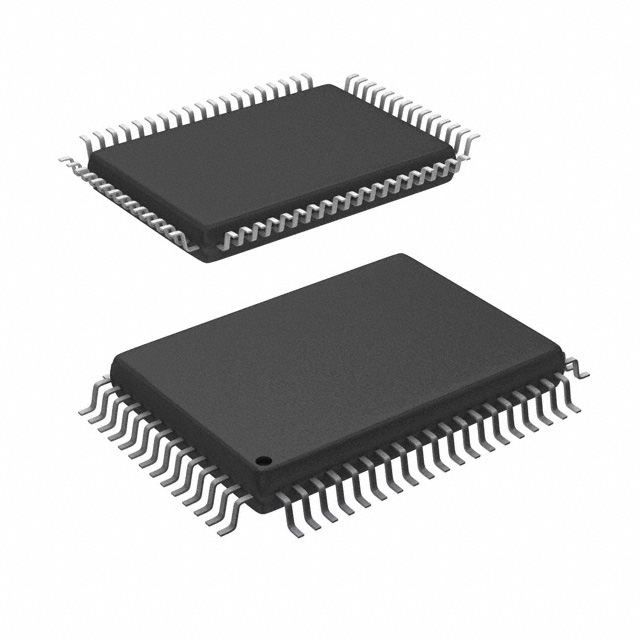

IR22381QPBF
IC GATE DRVR HALF-BRIDGE 64MQFP
|
- | Tray | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT | 12.5V ~ 20V | 0.8V, 2V | 350mA, 540mA |
|
IR25604STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
2EDS8265HXUMA1
IC GATE DRVR HALF-BRIDG DSO16-30
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
|

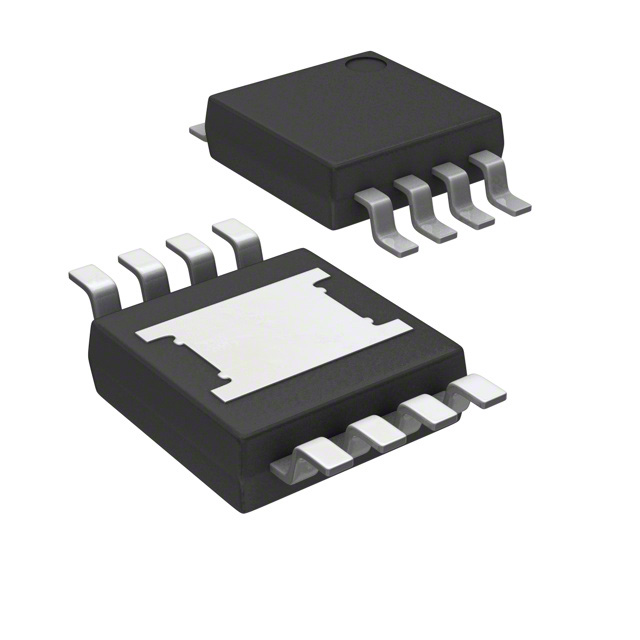

2EDN7523RXUMA1
IC GATE DRVR LOW-SIDE 8TSSOP
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
|
IR25603SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | 180mA, 260mA |
