| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2181STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IRS21962SPBF
MOSFET DRIVER
|
- | Bulk | Active | High-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.6V, 3.5V | 500mA, 500mA |
|
IRS2184STRPBF
IRS2184 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IR25602SPBF-INF
IR25602 - HALF-BRIDGE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IRS4426SPBF
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Bulk | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A |
|

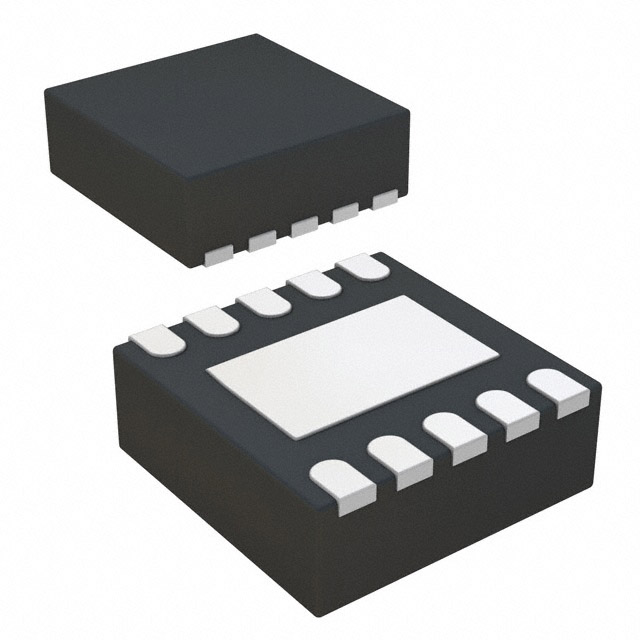

CHL8515CRT
IC GATE DRVR HALF-BRIDGE 10DFN
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.8V, 1V | 2A, 2A |
|

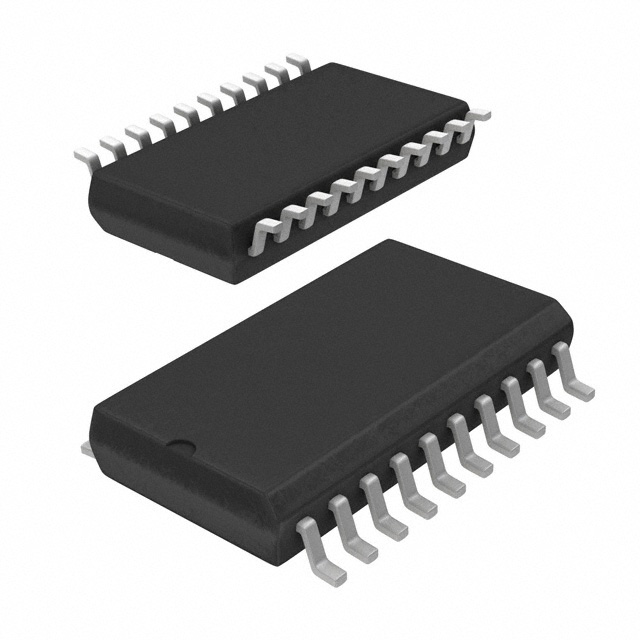

IRS21956STRPBF
IC GATE DRVR HALF-BRIDGE 20SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3.5V | 500mA, 500mA |
|

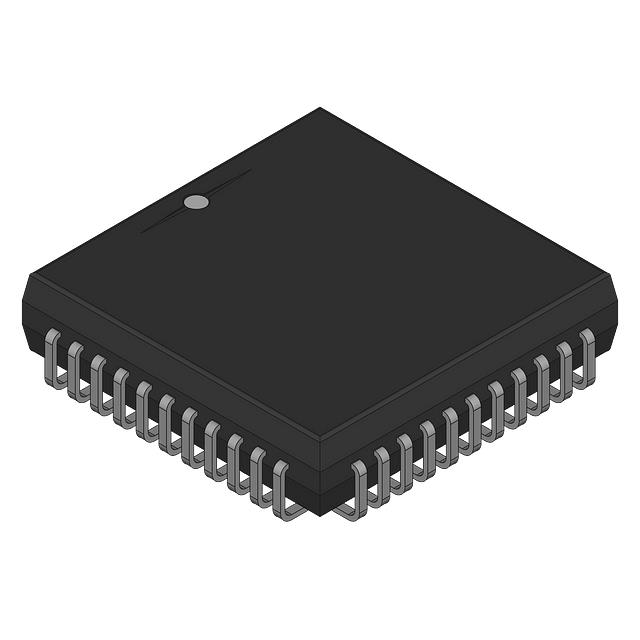

IR2235JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA |
|
IRS21281PBF
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS21851SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|
IR2308STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2133SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Not For New Designs | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
