| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2308STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2133SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Not For New Designs | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS2308STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

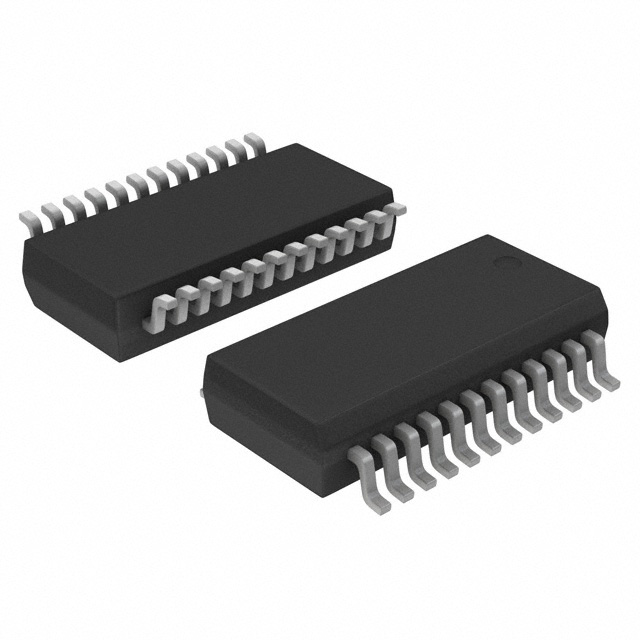

IR22141SSTRPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
IR20153SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tube | Obsolete | High-Side | Single | 1 | N-Channel MOSFET | 5V ~ 20V | 1.4V, 3V | 1.5A, 1.5A |
|
IR11671ASTRPBF
IC GATE DRVR FET EXTERNAL 8SOIC
|
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - |
|

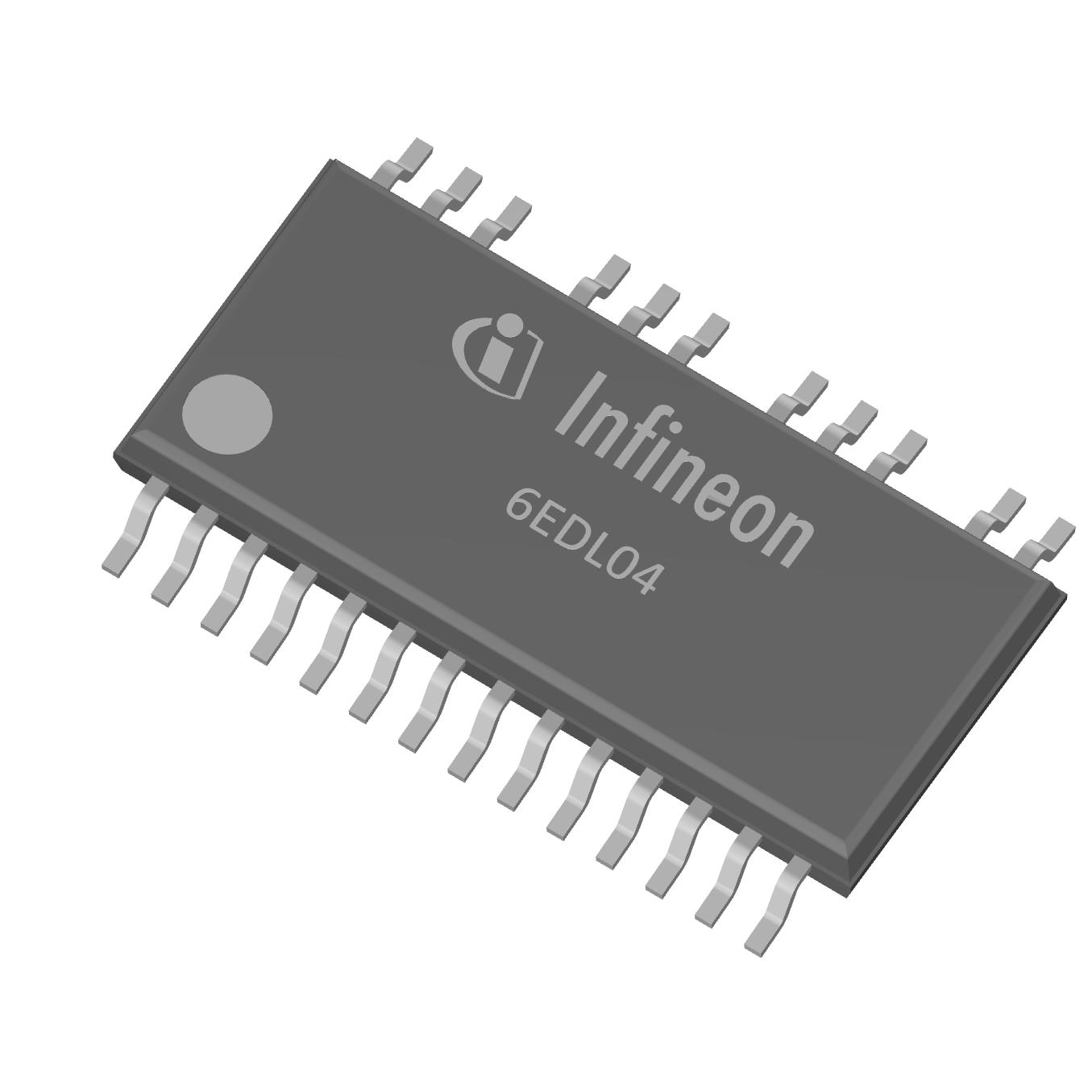

6EDL04N03PRXUMA1
6EDL04N03PRXUMA1
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | N-Channel, P-Channel MOSFET | 10V ~ 25V | 1.1V, 1.7V | 165mA, 375mA |
|
IRS2113STRPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 2.5A, 2.5A |
|
IR2138QPBF
IC GATE DRVR HALF-BRIDGE 64MQFP
|
- | Tray | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT | 12.5V ~ 20V | 0.8V, 2V | 350mA, 200mA |
|

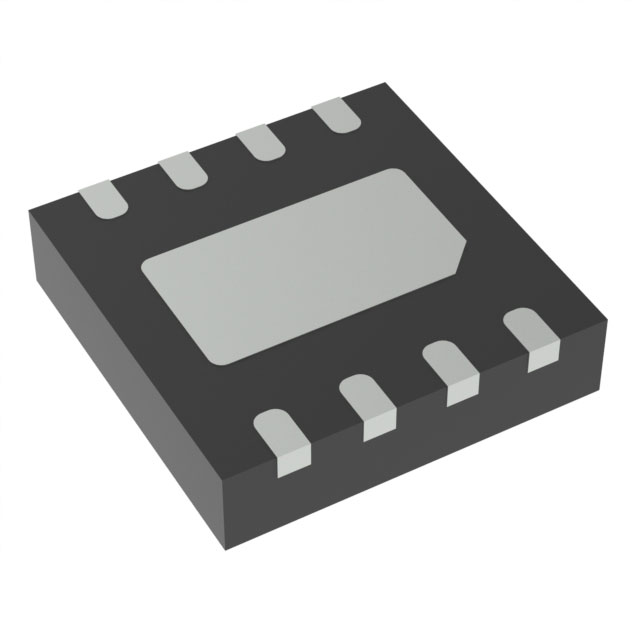

2EDN7523GXTMA1
IC GATE DRVR LOW-SIDE 8WSON
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
|
IRS2890DSTRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 220mA, 480mA |
|
IRS2330JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
