| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2001STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

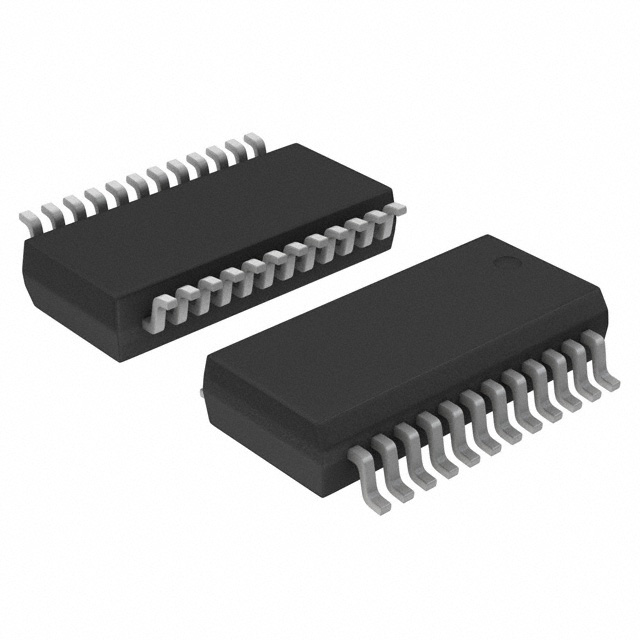

IR2114SSTRPBF
IC GATE DRVR HALF-BRIDGE 24SSOP
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT | 11.5V ~ 20V | 0.8V, 2V | 2A, 3A |
|
IR2136
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IRS21094SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IRS21844PBF
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Bulk | Last Time Buy | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IR2118STR
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|
IR2132
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
98-0255
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|

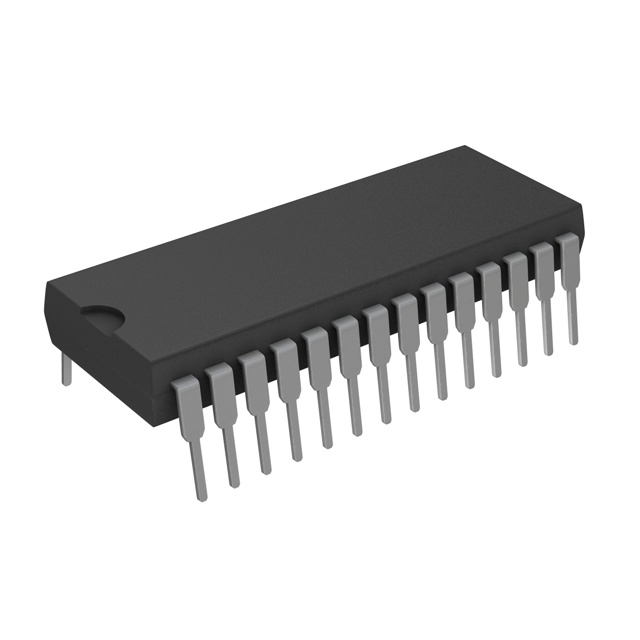

IR2135
IC GATE DRVR HALF-BRIDGE 28DIP
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS2509SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|

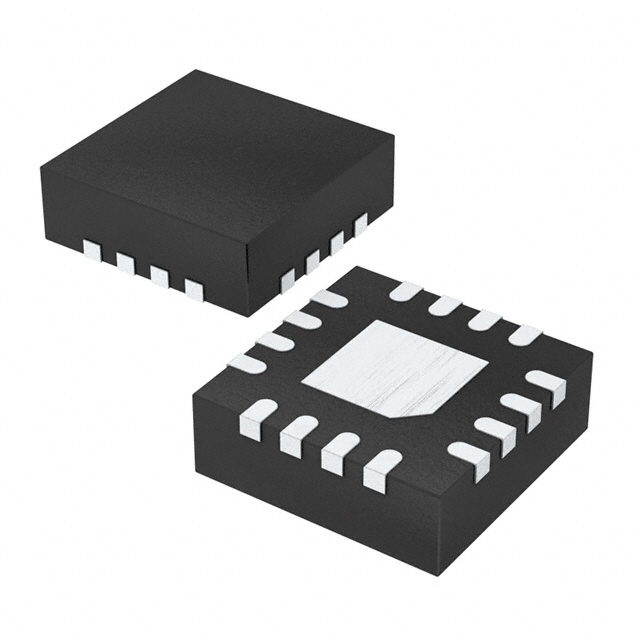

IRS21814MTRPBF
IC GATE DRVR HALF-BRIDGE 16MLPQ
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A |
|
IR4426STRPBF
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
