| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21064STRPBF
IC GATE DRVR HI/LOW SIDE 14SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS23364DSPBF
IRS23364 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2104PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|

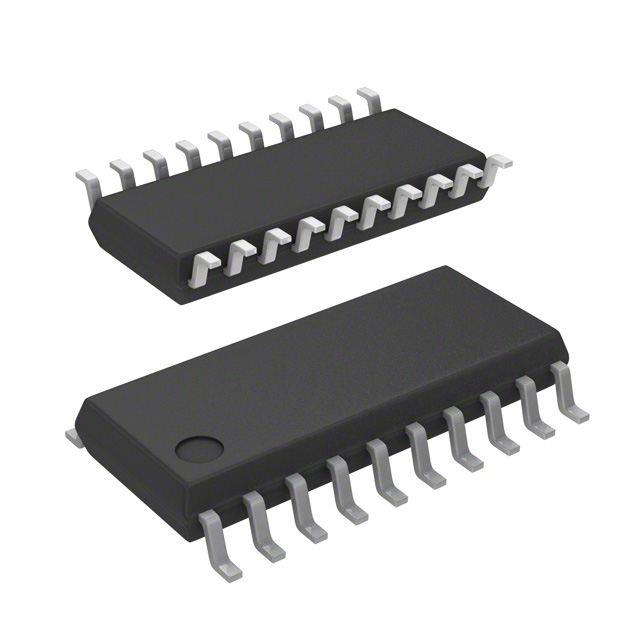

2ED020I12FIXUMA1
IC GATE DRVR HALF-BRIDGE DSO18-2
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 14V ~ 18V | 0.8V, 2V | 1A, 2A |
|

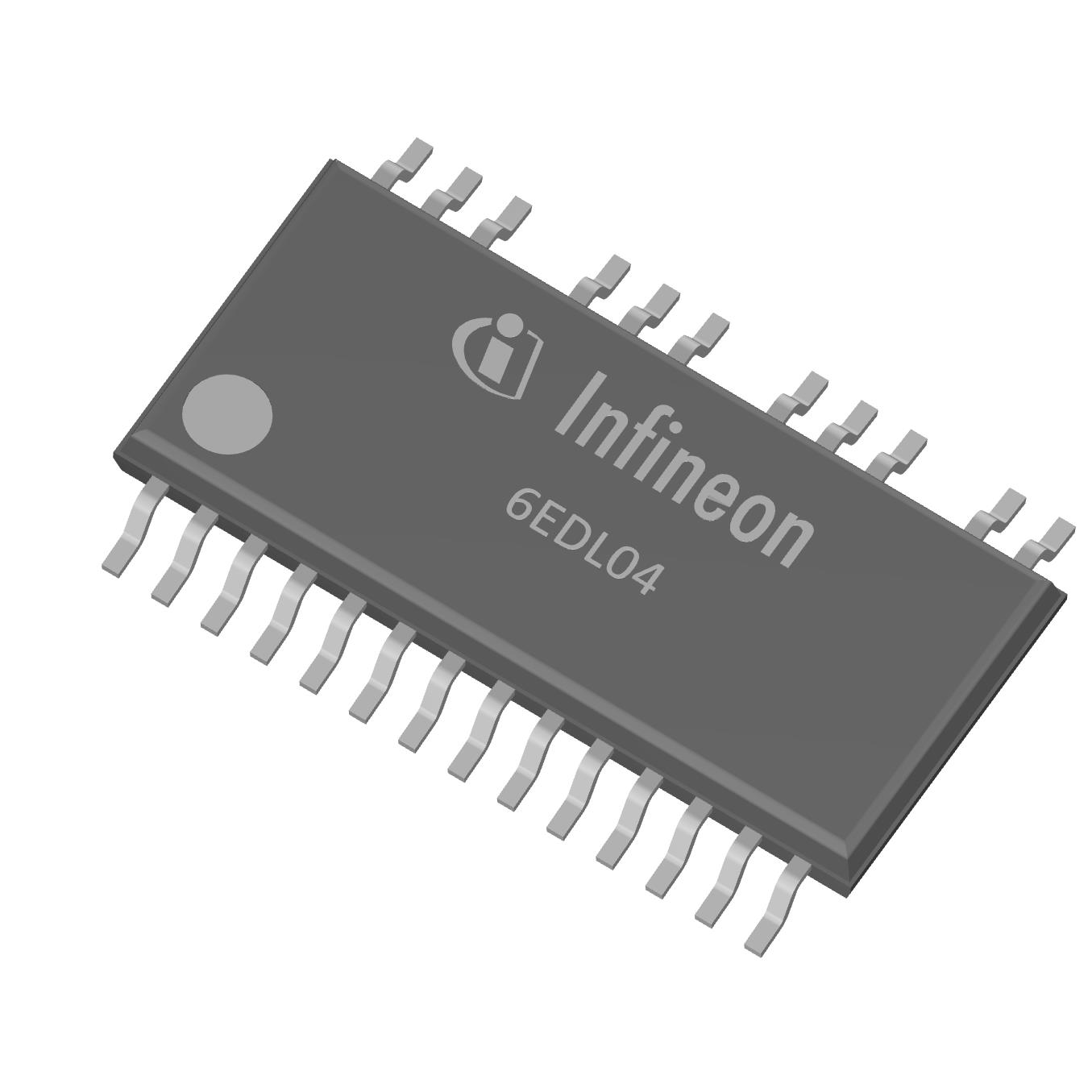

6EDL04I065NRXUMA1
6EDL04I065NRXUMA1
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT | 10V ~ 25V | 1.1V, 1.7V | 165mA, 375mA |
|
IR25603PBF
IR25603 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | 180mA, 260mA |
|
IR2182S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

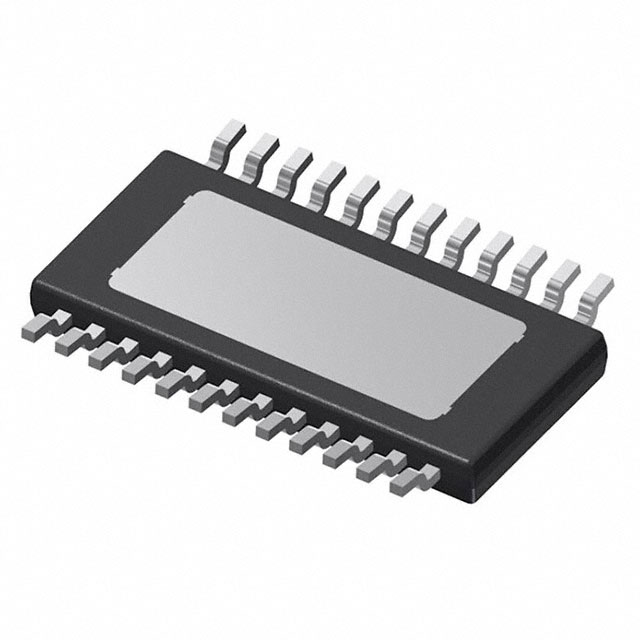

2ED4820EMXUMA2
48 V SMART HIGH-SIDE MOSFET GATE
|
EiceDRIVER™ | Tape & Reel (TR) | Active | High-Side | Independent | 2 | N-Channel MOSFET | 20V ~ 70V | 0.4V, 2.6V | 300mA, 1.3A |
|
IR21064SPBF-INF
HALF-BRIDGE BASED MOSFET DRIVER
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

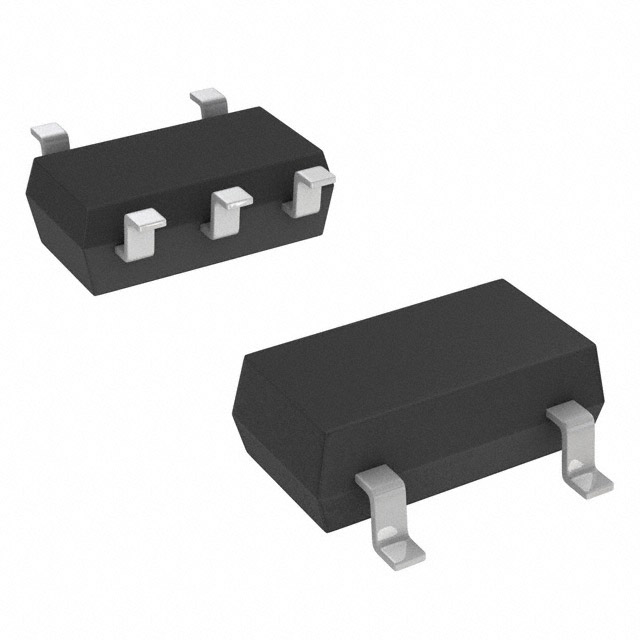

IR44252LTRPBF
IC GATE DRVR LOW-SIDE SOT23-5
|
µHVIC™ | Tape & Reel (TR) | Obsolete | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 5V ~ 18V | 0.6V, 2.7V | 300mA, 550mA |
|

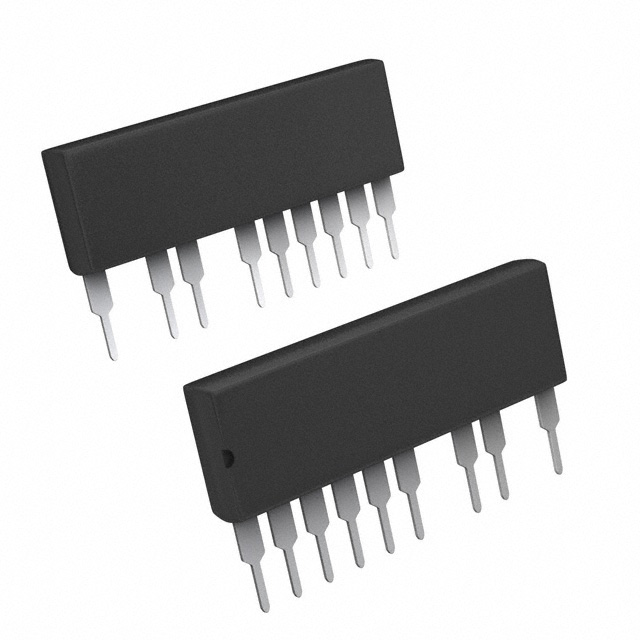

IR3103
IC GATE DRVR HALF-BRIDGE 11SIP
|
iMOTION™ | Tube | Obsolete | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | - |
|
IPN10ELSXUMA1
IC GATE DRVR HALF-BRIDGE SSOP-14
|
Automotive | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 4V ~ 40V | 0.8V, 3.5V | 400mA, 400mA |
