| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1EDB9275FXUMA1
IC IGBT DVR
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Single | 2 | IGBT, SiC MOSFET | 10V ~ 56V | - | 4A, 8A |
|
IR2112S
IC GATE DRVR HI/LOW SIDE 16SOIC
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|

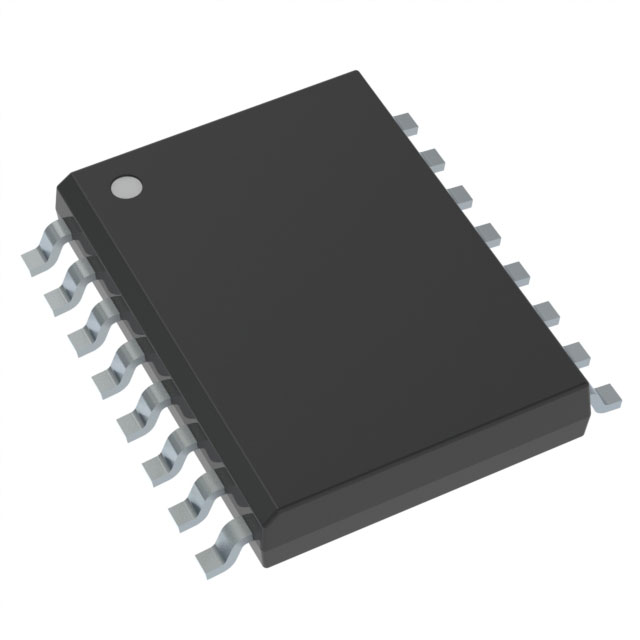

2EDS8265HXUMA3
DRIVER IC
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 20V | -, 1.65V | 4A, 8A |
|
IRS2332SPBF
MOSFET DRIVER, PDSO28
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

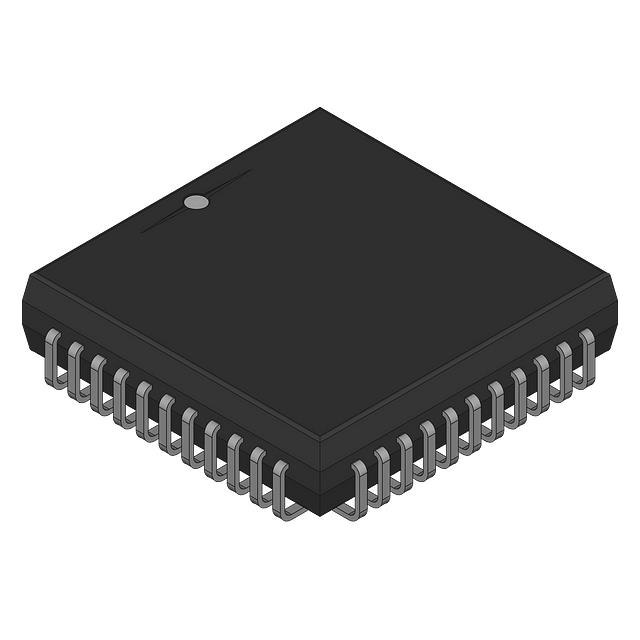

IR2233JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA |
|
IR21094PBF
IR21094 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS2004STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2108S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2118
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|
IR21362JTR
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IR2125PBF
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A |
|
IRS2332JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
