| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

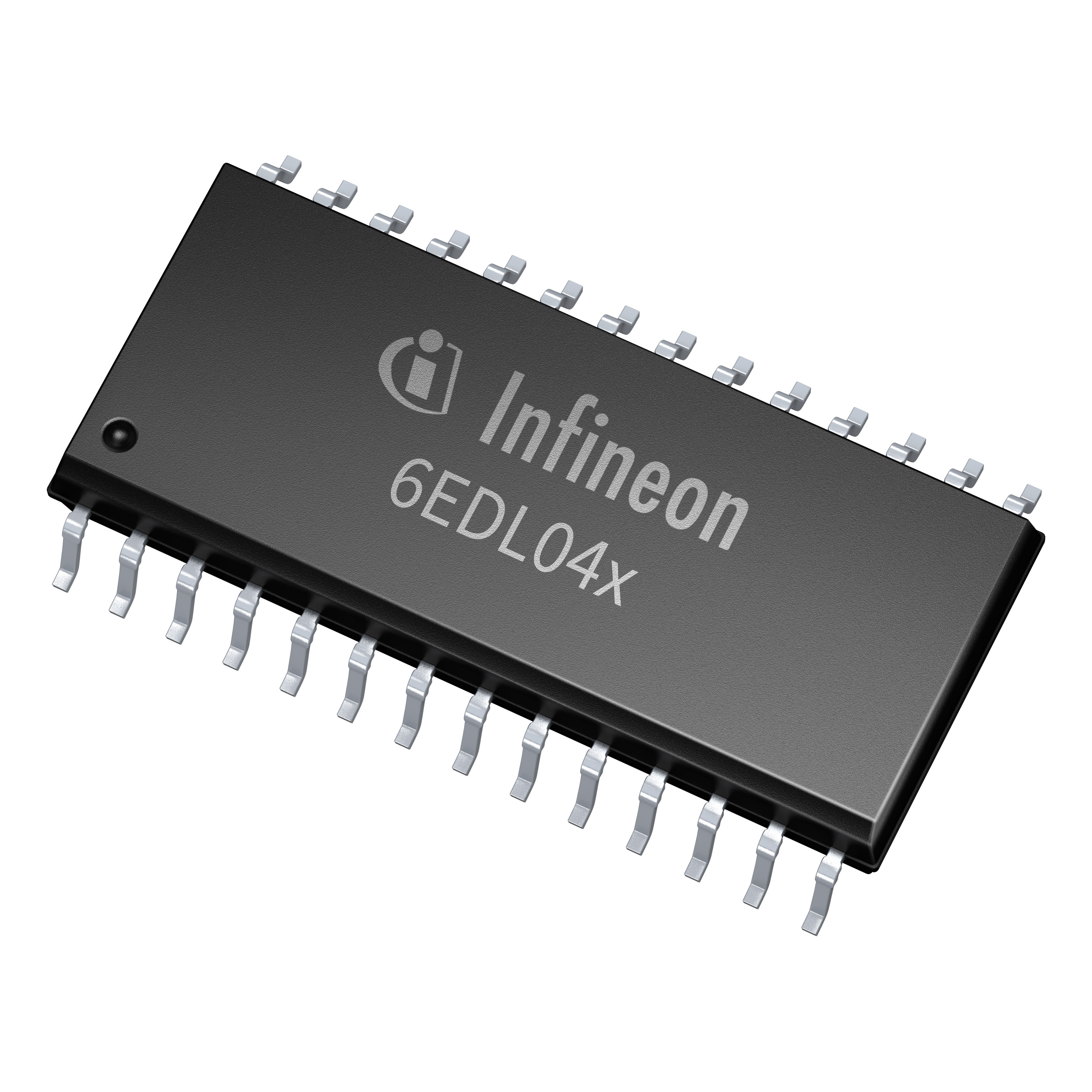

6EDL04I065NTXUMA1
6EDL04I065NTXUMA1
|
6EDL04x065xT | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT | 13V ~ 17.5V | 1.1V, 1.7V | 165mA, 375mA |
|
IRS2509STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IRS21271PBF
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Discontinued at | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

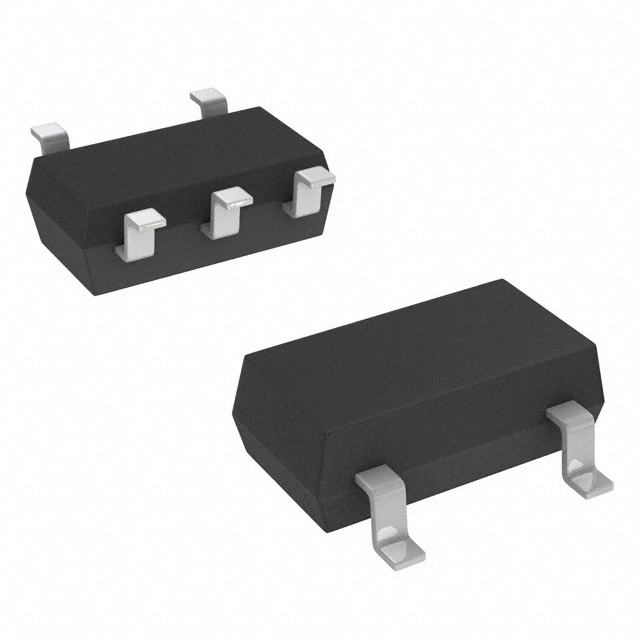

IRS44273LTRPBF
IC GATE DRVR LOW-SIDE SOT23-5
|
µHVIC™ | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 10.2V ~ 20V | 0.8V, 2.5V | 1.5A, 1.5A |
|

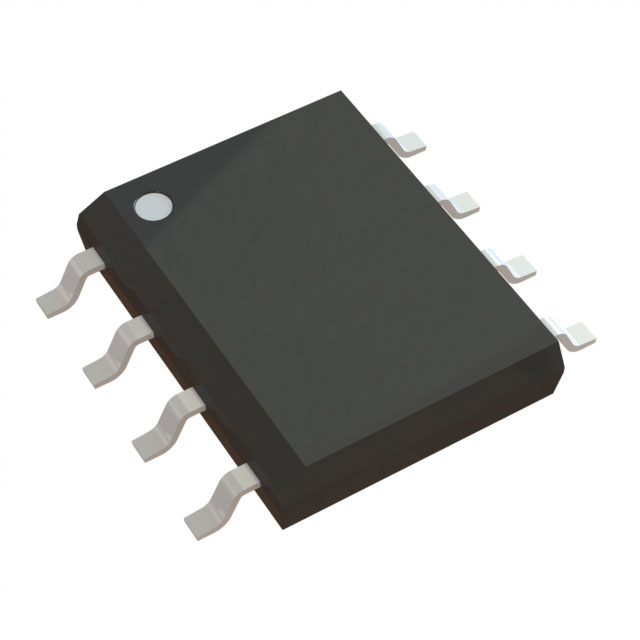

2ED24427N01FXUMA1
LOW SIDE DRIVERS
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.5V | 10A, 10A |
|

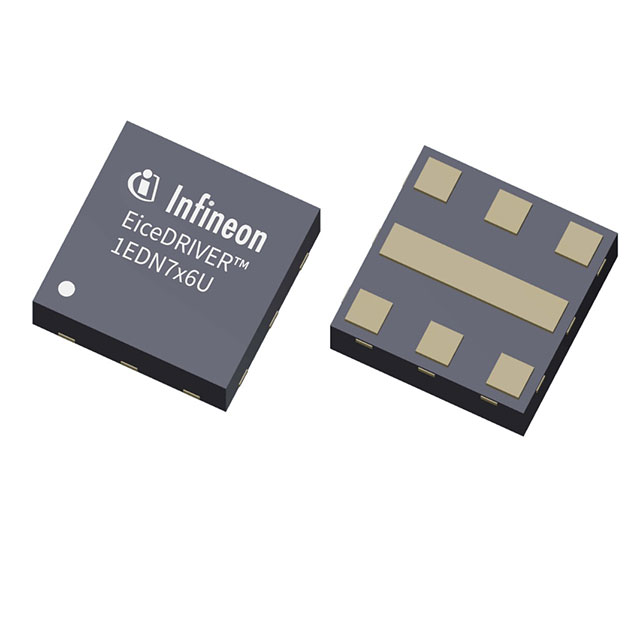

1EDN7146UXTSA1
INT. POWERSTAGE/DRIVER PG-VSON-1
|
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IRS21091SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

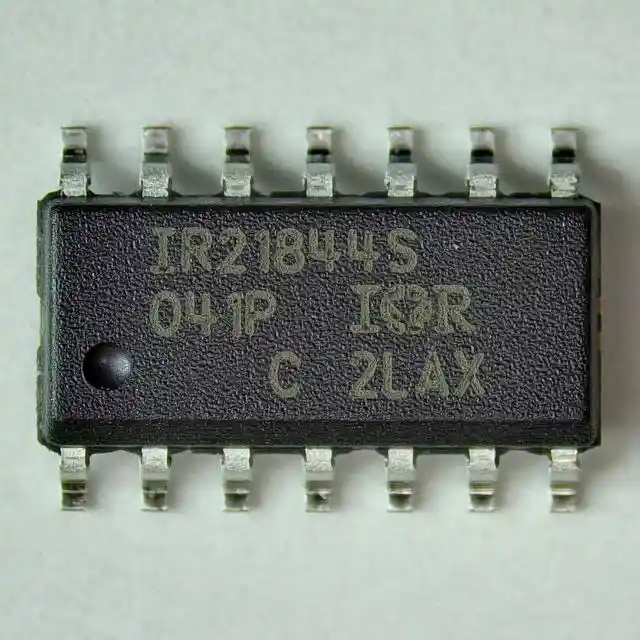

IR21844STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

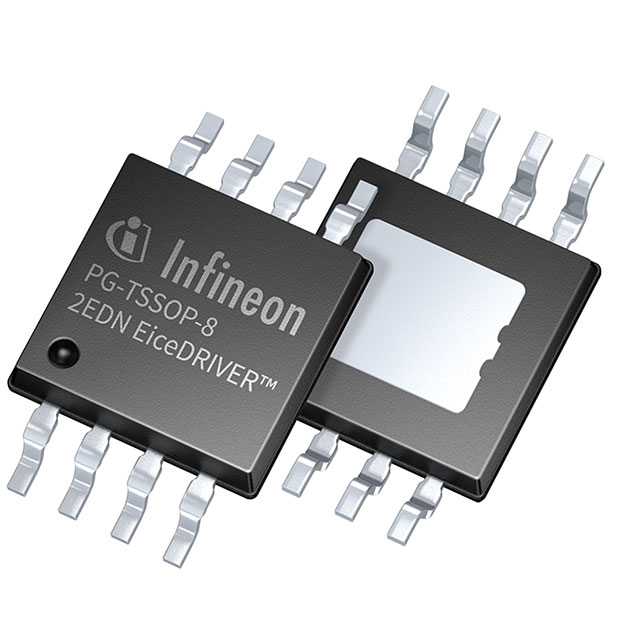

2EDN8533RXTMA1
DRIVER IC PG-TSSOP-8
|
EiceDRIVER™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A |
|

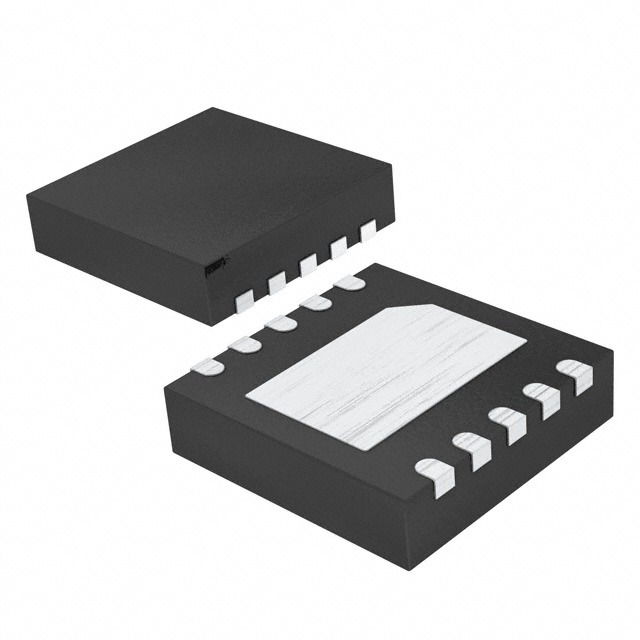

PX3517FTMA1
IC GATE DRVR HALF-BRIDGE 10TDSON
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 8V | 0.8V, 2.5V | 2A, 2A |
|

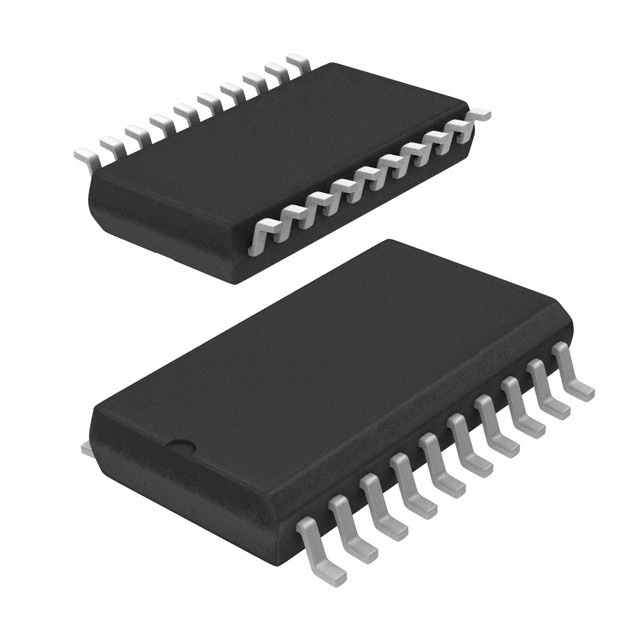

AUIRS2334S
IC GATE DRVR HALF-BRIDGE 20SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2133STRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
