| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5114AMF/NOPB
IC GATE DRVR LOW-SIDE SOT23-6
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 12.6V | - | 1.3A, 7.6A |
|
LM5060Q1MM/NOPB
IC GATE DRVR HIGH-SIDE 10VSSOP
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel MOSFET | 5.5V ~ 65V | 0.8V, 2V | 24µA, 2.2mA |
|
UCC37325DGN
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 15V | 1V, 2V | 4A, 4A |
|
|
UCC27425DGN
IC GATE DRVR LOW-SIDE 8MSOP
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4V ~ 15V | 1V, 2V | 4A, 4A |
|
UC2714DPG4
IC GATE DRVR LOW-SIDE 16SOIC
|
- | Tube | Obsolete | Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 7V ~ 20V | 0.8V, 2V | 500mA, 1A |
|

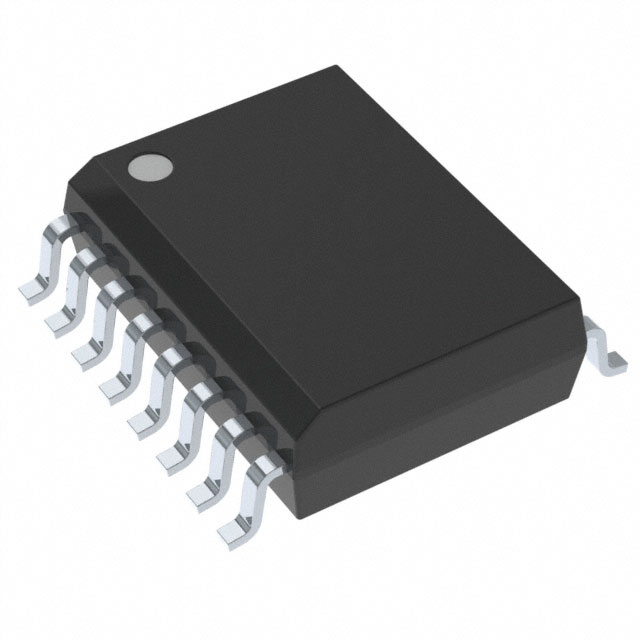

UC2707DWG4
IC DUAL CHAN PWR DRIVER 16-SOIC
|
- | Bulk | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 5V ~ 40V | 0.8V, 2.2V | 1.5A, 1.5A |
|
TPIC44L02DBRG4
IC GATE DRVR LOW-SIDE 24SSOP
|
- | Tape & Reel (TR) | Discontinued at | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 5.5V | - | 1.2mA, 1.2mA |
|
UCC27282QDDAQ1
AUTOMOTIVE 3-A, 120-V HALF BRIDG
|
Automotive, AEC-Q100 | Tube | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5.5V ~ 16V | 1.3V, 1.9V | 2.5A, 3.5A |
|
UCD7201PWPG4
IC GATE DRVR LOW-SIDE 14HTSSOP
|
- | Tube | Discontinued at | Low-Side | Independent | 2 | N-Channel MOSFET | 4.25V ~ 15V | 1.16V, 2.08V | 4A, 4A |
|
5962-0051401Q2A
3-A/3-A DUAL-CHANNEL GATE DRIVER
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 5V ~ 35V | 0.8V, 2V | 3A, 3A |
|
TPIC46L02DBG4
IC GATE DRVR LOW-SIDE 28SSOP
|
- | Bulk | Discontinued at | Low-Side | Independent | 6 | N-Channel MOSFET | 4.5V ~ 5.5V | - | 1.2mA, 1.2mA |
|
|
UCC44273DBVR
4-A/4-A SINGLE-CHANNEL LOW-SIDE
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4.5V ~ 18V | - | 4A, 4A |
