| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2330DSTRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

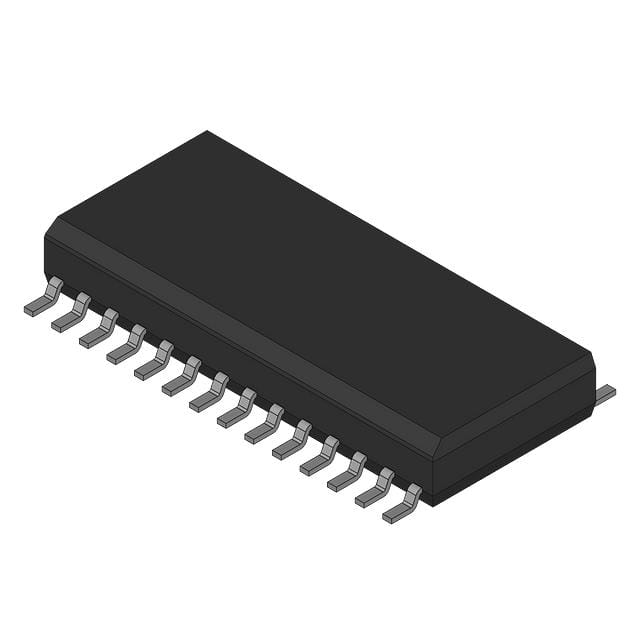

IR2235STRPBF
IR2235S - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA |
|
IR2302S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2153D
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 15.6V | - | - |
|
IR21814STR
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR21365JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|
IRS2330DSPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR25600SPBF
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Bulk | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
|

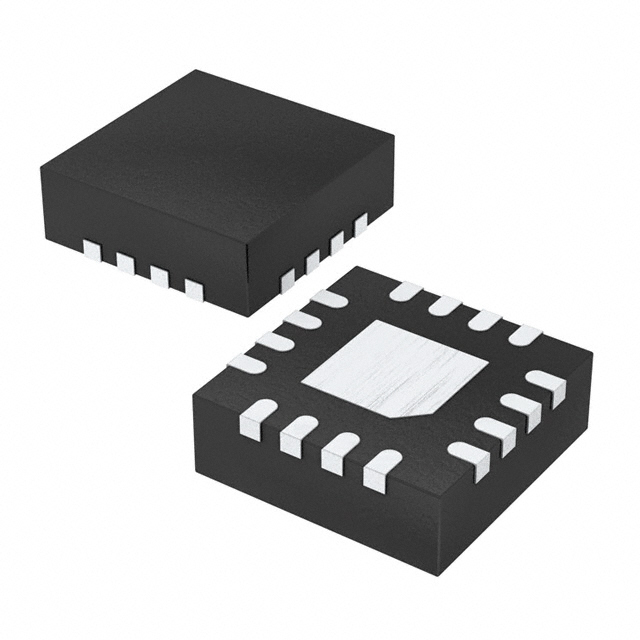

IR3598MTRPBF
IC GATE DRVR HALF-BRIDGE 16QFN
|
- | Tape & Reel (TR) | Last Time Buy | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.5V ~ 5.5V | - | - |
|
IR2133JPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|

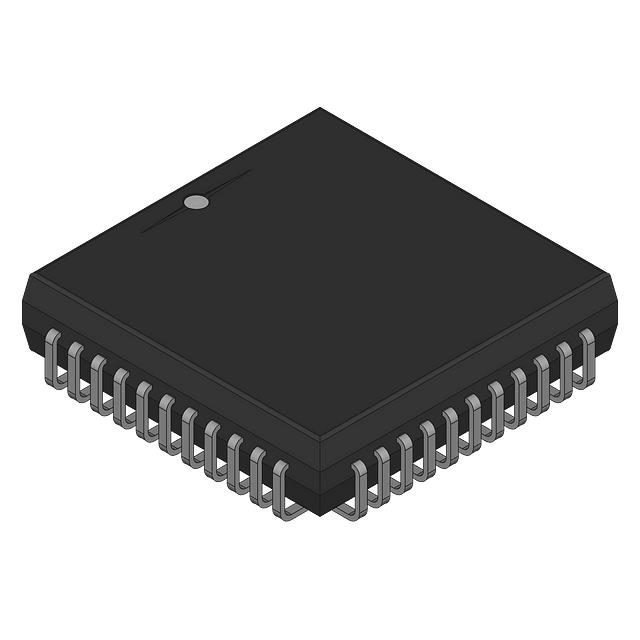

IR2136JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|

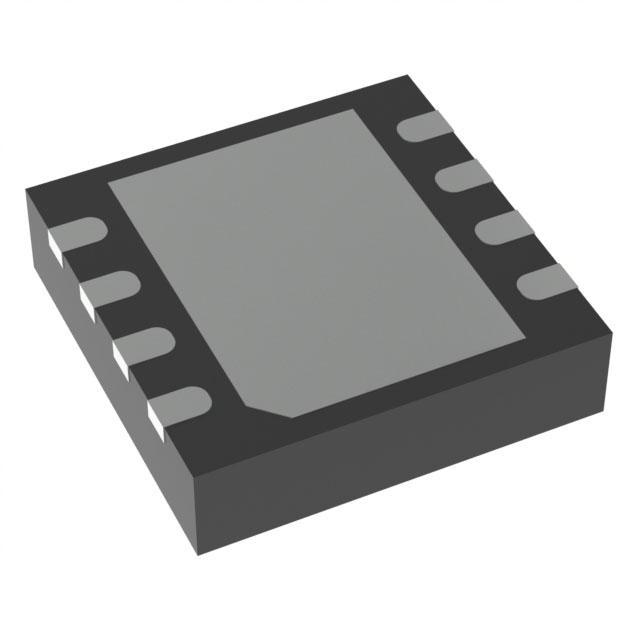

2EDL8023G3CXTMA1
INT. POWERSTAGE/DRIVER
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 3A, 5A |
