| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
2EDL8023G3CXTMA1
INT. POWERSTAGE/DRIVER
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 3A, 5A |
|

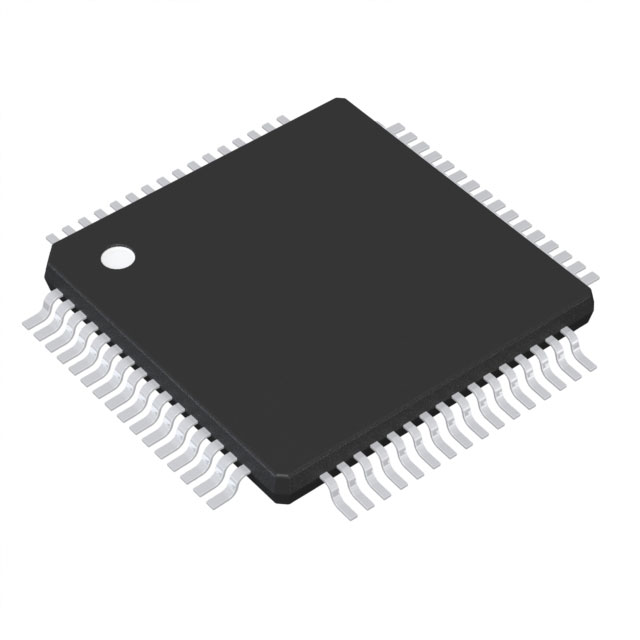

TLE9180D32QKXUMA1
DRIVER_IC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | N-Channel MOSFET | 6V ~ 60V | - | 2A |
|
IR2113STRPBF
IC GATE DRVR HALF-BRIDGE 16SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|
IR2011SPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Bulk | Active | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.2V | 1A, 1A |
|
IR21844SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IRS2103SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2112PBF
IC GATE DRVR HI/LOW SIDE 14DIP
|
- | Tube | Not For New Designs | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|
IR2135S
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR2301SPBF
IC GATE DRVR HI/LOW SIDE 8SOIC
|
- | Tube | Not For New Designs | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR2130STRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IR21814STRPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
6ED2742S01QXTMA1
THREE-PHASE MOTOR CONTROL GATE D
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 6 | N-Channel MOSFET | 6V ~ 140V | 1.4V, 1.4V | 1A, 2A |
