| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6386E
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|
L6386AD
IC GATE DRVR HALF-BRIDGE 14SO
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|
STDRIVEG600W
DISCRETE
|
- | Bulk | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.75V ~ 20V | 1.45V, 2V | 5.5A, 6A |
|
L9857-TR-S
IC GATE DRVR HIGH SIDE 8SO
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
L6388D013TR
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.1V, 1.8V | 400mA, 650mA |
|

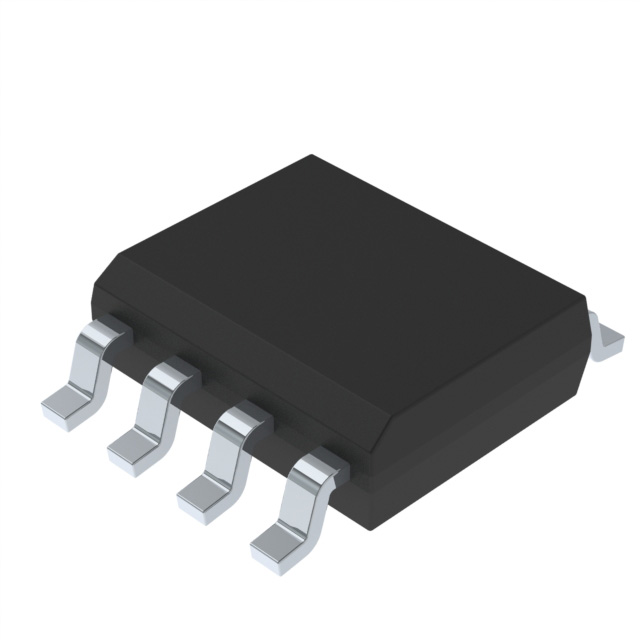

L6384D
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 14.6V ~ 16.6V | 1.5V, 3.6V | 400mA, 650mA |
|
L9857-LF
IC GATE DRVR HIGH-SIDE 8SO
|
- | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel MOSFET | 10V ~ 18V | - | 500mA, 500mA |
|
STP15810
*
|
- | Tube | Active | High-Side | Single | 1 | N-Channel MOSFET | - | - | 110A, - |
|

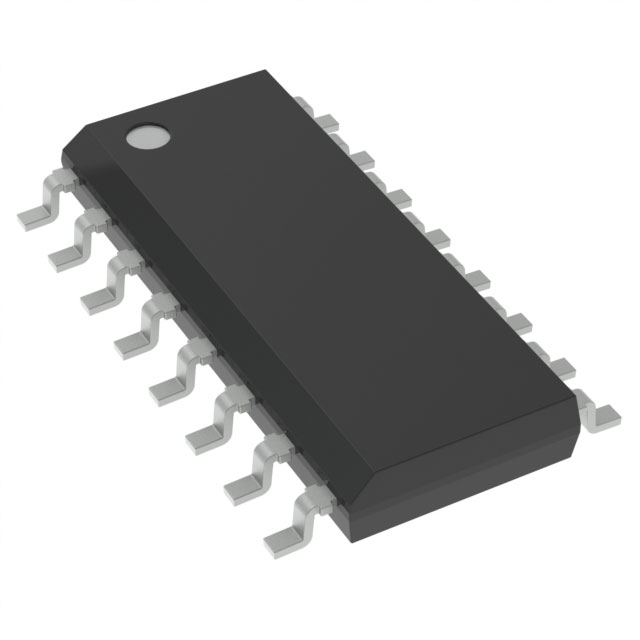

L6390D
IC GATE DRVR HALF-BRIDGE 16SO
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12.5V ~ 20V | 1.1V, 1.9V | 290mA, 430mA |
|
L6384D013TR
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 14.6V ~ 16.6V | 1.5V, 3.6V | 400mA, 650mA |
|
|
L6743B
IC GATE DRVR HALF-BRIDGE 8VFDFPN
|
- | Tray | Discontinued at | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 2A, - |
|
|
L6747A
IC GATE DRVR HALF-BRIDGE 8VFDFPN
|
- | Tray | Discontinued at | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 3.5A, - |
