| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR21064SPBF
IC GATE DRVR HI/LOW SIDE 14SOIC
|
- | Tube | Obsolete | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS2301SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR21368JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IR2104
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 210mA, 360mA |
|
IR2113
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 3.3V ~ 20V | 6V, 9.5V | 2A, 2A |
|
IRS2003STRPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR21814
IC GATE DRVR HALF-BRIDGE 14DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|

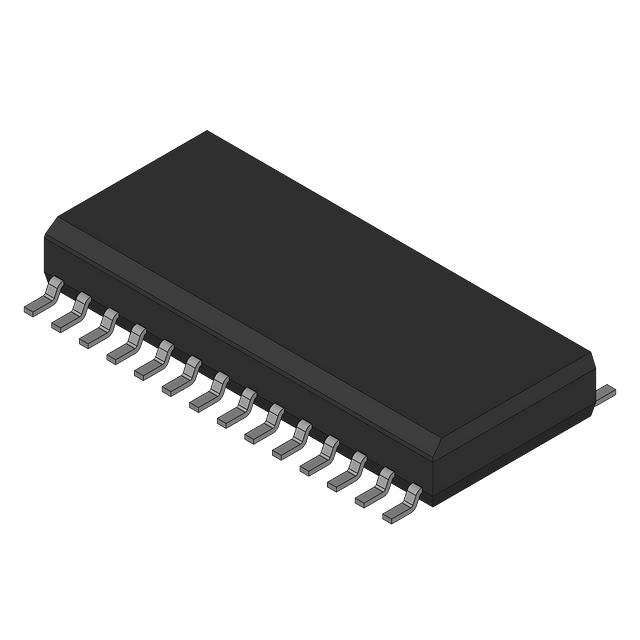

6ED003L06F2XUMA2
6ED003L06 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | 165mA, 375mA |
|
6ED003L06-FXUMA1
6ED003L06 - HALF-BRIDGE BASED MO
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | 165mA, 375mA |
|
|
IRS23365DMTRPBF
IC GATE DRVR HALF-BRIDGE 48MLPQ
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 180mA, 380mA |
|
IRS25091SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IR2109
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
