| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

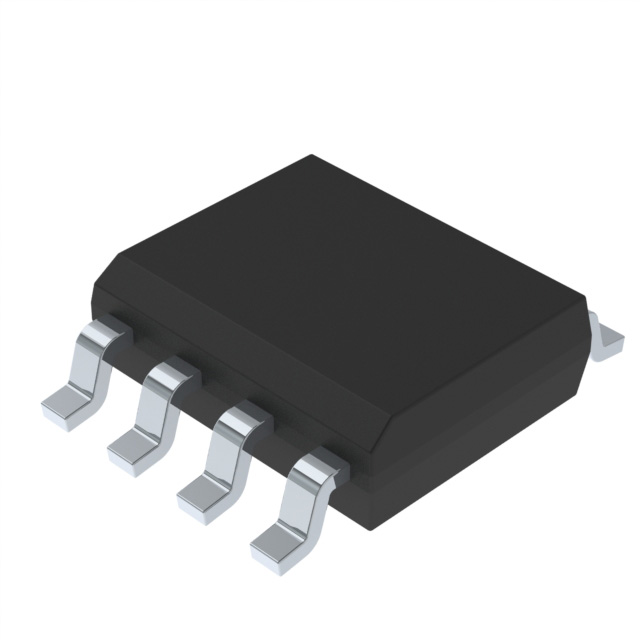

L6569D
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 16.6V | - | 170mA, 270mA |
|
TD310IDT
IC GATE DRVR LOW-SIDE 16SO
|
- | Tape & Reel (TR) | Active | Low-Side | Independent | 3 | IGBT, N-Channel MOSFET | 4V ~ 16V | 0.8V, 2V | - |
|
L9856
IC GATE DRVR HIGH-SIDE 8SO
|
- | Tube | Obsolete | High-Side | Single | 1 | N-Channel MOSFET | 4.4V ~ 6.5V | - | 500mA, 500mA |
|

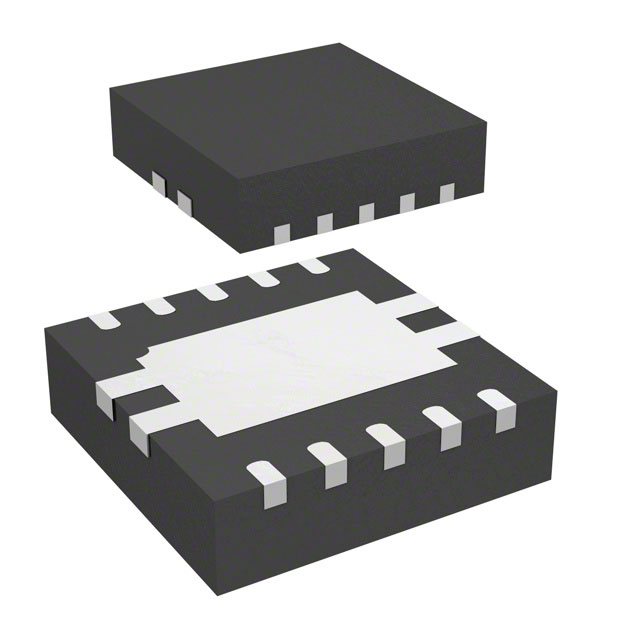

L6743QTR
IC GATE DRVR HALF-BRIDGE 10DFN
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 2A, - |
|
TD350ID
IC GATE DRVR HIGH-SIDE 14SO
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 26V | 0.8V, 4.2V | 1.5A, 2.3A |
|
L6385
IC GATE DRVR HALF-BRIDG 8MINIDIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|

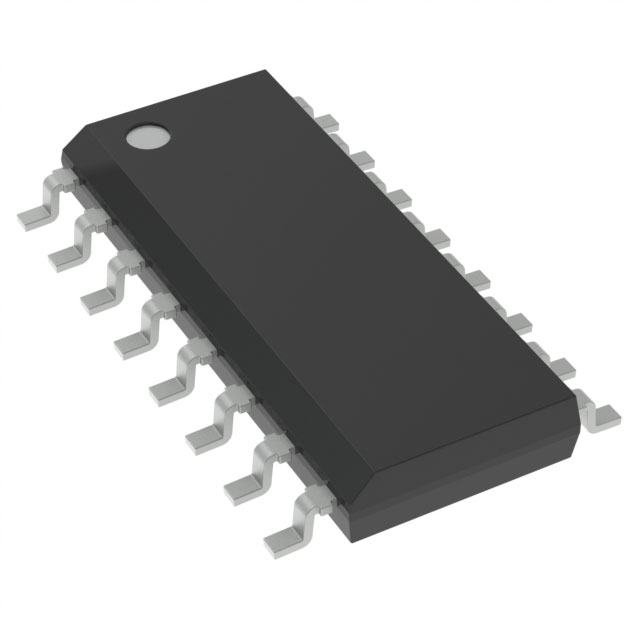

L6390DTR
IC GATE DRVR HALF-BRIDGE 16SO
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 12.5V ~ 20V | 1.1V, 1.9V | 290mA, 430mA |
|
STSR3CD
IC GATE DRVR LOW-SIDE 8SO
|
- | Tube | Obsolete | Low-Side | Single | 1 | N-Channel MOSFET | 4V ~ 5.5V | - | 2A, 3.5A |
|
L9857-TR-LF
IC GATE DRVR HIGH-SIDE 8SO
|
- | Tape & Reel (TR) | Active | High-Side | Single | 1 | N-Channel MOSFET | 10V ~ 18V | - | 500mA, 500mA |
|
L6743TR
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 12V | 0.8V, 2V | 2A, - |
|
STDRIVEG611Q
HIGH VOLTAGE AND HIGH-SPEED HALF
|
ECOPACK® | Tray | Active | Half-Bridge | Independent | 2 | GaN FET | 10.6V ~ 18V | 1.45V, 2V | 1.05A, 2.4A |
|
L6388ED013TR
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.1V, 1.8V | 400mA, 650mA |
