| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC3900ES8#PBF
SYNC RECTIFIER DRVR FOR FOR CONV
|
- | Bulk | Obsolete | Low-Side | Single | 2 | N-Channel MOSFET | 4.5V ~ 11V | - | 2A, 2A |
|
IR2118PBF
IR2118 - GATE DRIVER
|
- | Bulk | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 250mA, 500mA |
|
IRS2109PBF
IRS2109 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2183STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IRS21956SPBF
BUFFER/INVERTER BASED PERIPHERAL
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3.5V | 500mA, 500mA |
|
IR21368SPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|

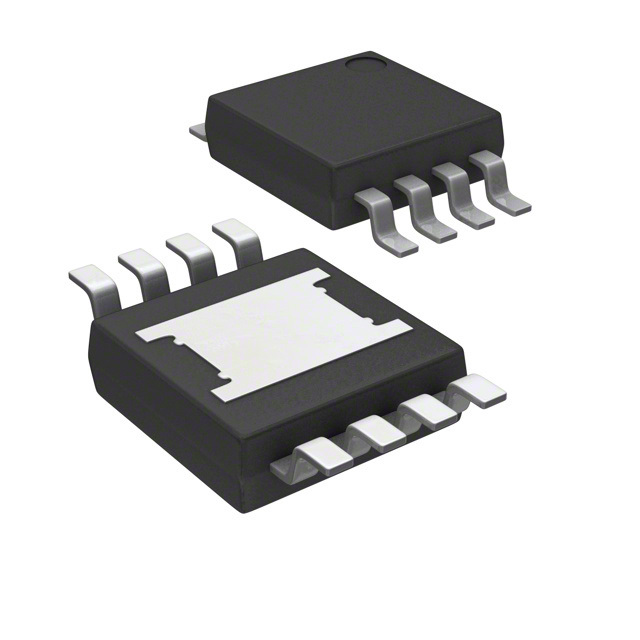

2EDN8524RXUMA1
IC GATE DRVR LOW-SIDE 8TSSOP
|
EiceDriver™ | Tape & Reel (TR) | Discontinued at | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 5A, 5A |
|

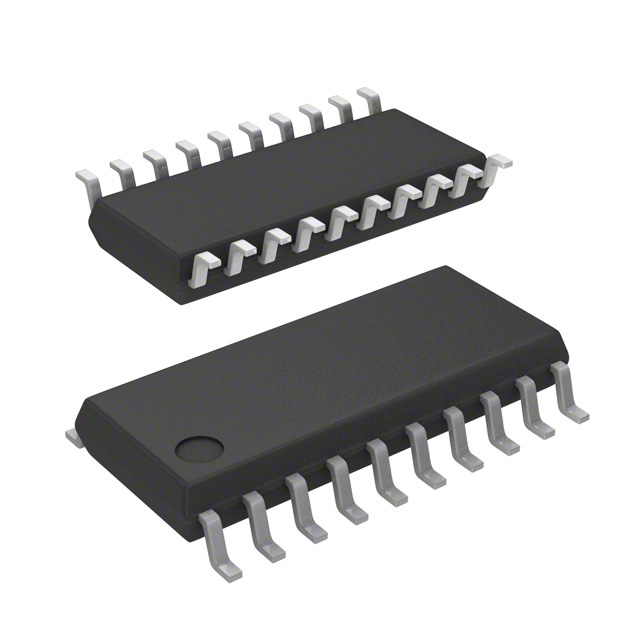

2ED020I12-F
IC GATE DRVR HALF-BRIDGE DSO18-2
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 0V ~ 18V | - | 1A, 2A |
|
6EDL04I06NTXUMA1
IC GATE DRVR HALF-BRIDG DSO28-17
|
EiceDriver™ | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 17.5V | 1.1V, 1.7V | - |
|
IRS21850STRPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 4A, 4A |
|
IRS2111PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Bulk | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 8.3V, 12.6V | 290mA, 600mA |
|
2EDN8523FXTMA1
IC GATE DRVR LOW-SIDE DSO8
|
EiceDriver™ | Tape & Reel (TR) | Active | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 5A, 5A |
