| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6386ED
IC GATE DRVR HALF-BRIDGE 14SO
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|

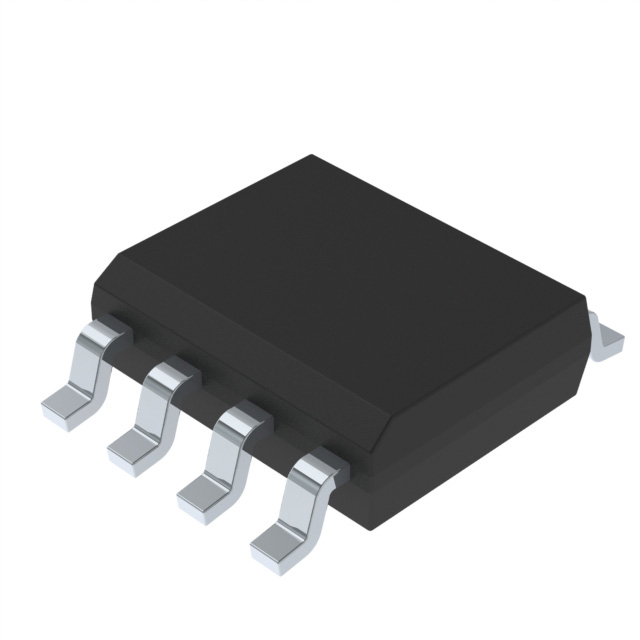

L6388D
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.1V, 1.8V | 400mA, 650mA |
|
L6399D
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.9V | 290mA, 430mA |
|
L6389ED
IC GATE DRVR HALF-BRIDGE HI/LO
|
- | Tube | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 17V (Max) | 1.1V, 1.8V | 400mA, 650mA |
|
VN9D7D20FTR
Linear IC's
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
L6387E
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|
L6384E
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Discontinued at | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 14.6V ~ 16.6V | 1.5V, 3.6V | 400mA, 650mA |
|
|
L99H92Q5-TR
LINEAR IC'S
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.51V ~ 28V | - | - |
|
PM8834
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 5V ~ 18V | 0.8V, 2.5V | 4A, 4A |
|
L6385ED013TR
IC GATE DRVR HALF-BRIDGE 8SO
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 17V (Max) | 1.5V, 3.6V | 400mA, 650mA |
|

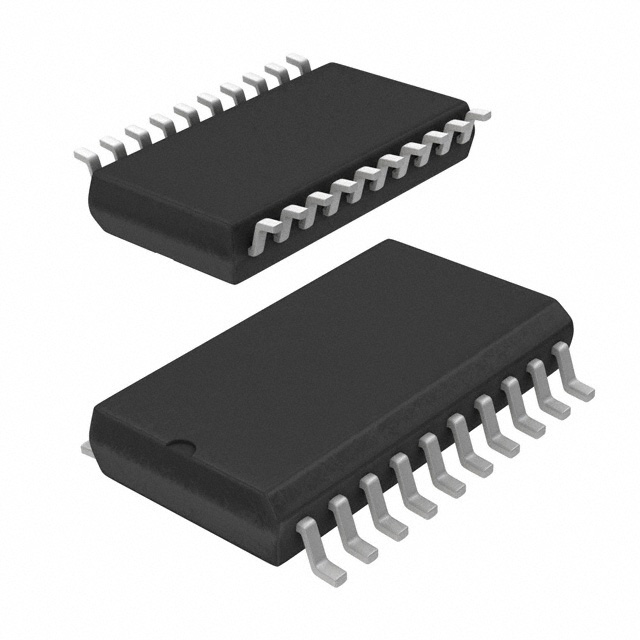

L9380-LF
IC GATE DRVR HIGH-SIDE 20SO
|
- | Tube | Active | High-Side | Independent | 3 | N-Channel MOSFET | 7V ~ 18.5V | 1V, 3V | - |
|
TD352IDT
IC GATE DRVR HIGH-SIDE 8SO
|
- | Tape & Reel (TR) | Active | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 26V | 0.8V, 4.2V | 1.3A, 1.7A |
