| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR2113C
IC GATE DRIVER
|
* | Tube | Obsolete | - | - | - | - | - | - | - |
|

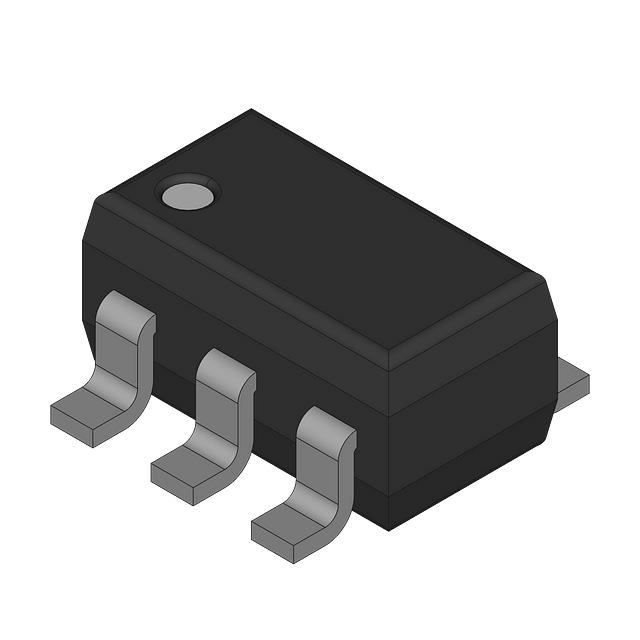

1EDN8511B
1EDN8511 - GATE DRIVER
|
EiceDriver™ | Bulk | Active | Low-Side | Single | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.2V, 1.9V | 4A, 8A |
|
AUIRS2004S
IC GATE DRVR HALF-BRIDGE 8SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
AUIRS2012STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 20V | 0.7V, 2.5V | 2A, 2A |
|
98-0334PBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tube | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
|
DHP1140N08P5AUMA1
INT. POWERSTAGE/DRIVER PG-IQFN-2
|
- | Tape & Reel (TR) | Not For New Designs | - | - | - | - | - | - | - |
|
AUIRS4427S
IC GATE DRVR LOW-SIDE 8SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 6V ~ 20V | 0.8V, 2.5V | 2.3A, 3.3A |
|

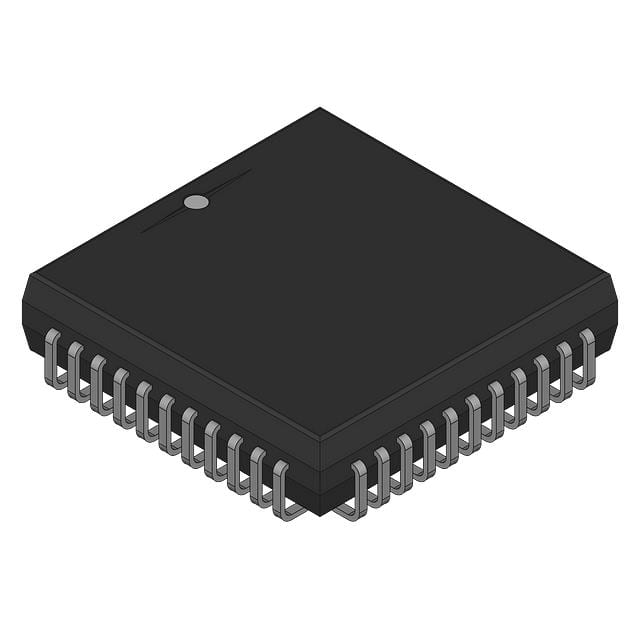

IRS23364DJTRPBF
IRS23364 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
IRS2128STRPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

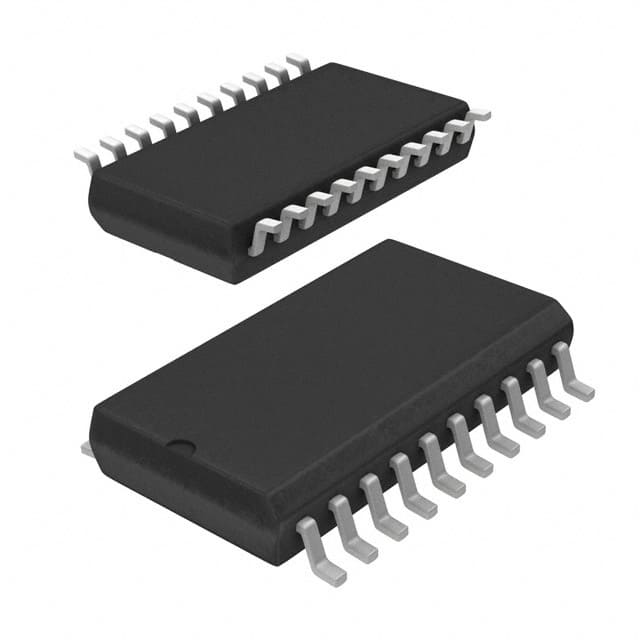

IRS2334STRPBF
IRS2334 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|
|
2ED2748S01GXTMA1
LEVEL SHIFT SOI
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IRS2103PBF
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Discontinued at | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
