| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRS2509SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA |
|
IRS21271SPBF
IC GATE DRVR HIGH-SIDE 8SOIC
|
- | Bulk | Last Time Buy | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
TLE9180C21QKXUMA1
IC MOTOR DRIVER 64LQFP
|
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|

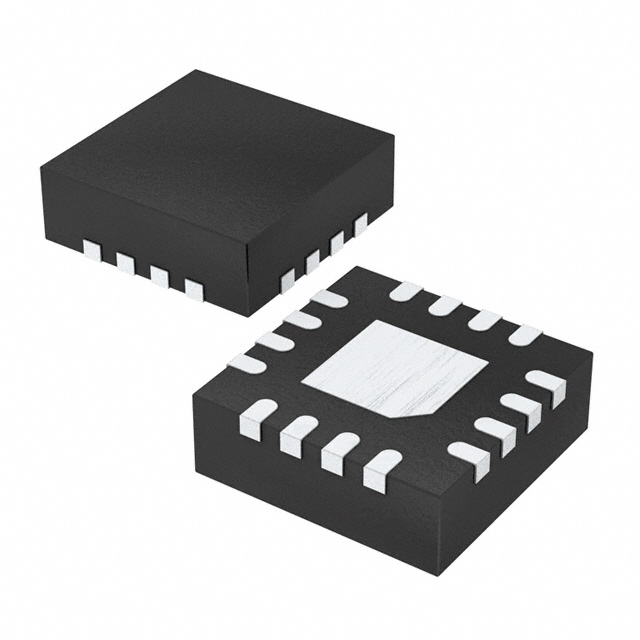

IR3598MTR1PBF
IC GATE DRVR HALF-BRIDGE 16QFN
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 4 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.7V, 1.3V | - |
|
|
IRS21851C
IC GATE DRVR HIGH-SIDE SGL 8SOIC
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|
IRS2109SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Bulk | Last Time Buy | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|

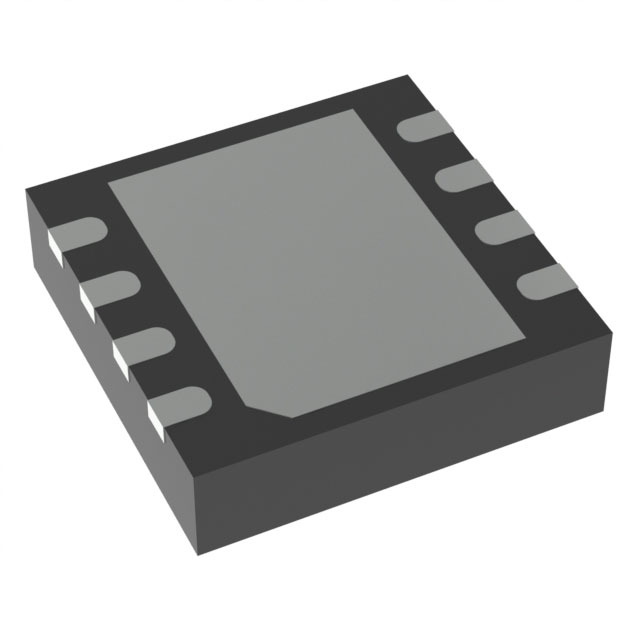

2EDL8024G3CXTMA1
INT. POWERSTAGE/DRIVER
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 4A, 5A |
|
IRS21064STRPBF
IC GATE DRVR HI/LOW SIDE 14SOIC
|
- | Tape & Reel (TR) | Active | High-Side or Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2125
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 0V ~ 18V | 0.8V, 2.2V | 1.6A, 3.3A |
|
IRS2127PBF
IC GATE DRVR HIGH-SIDE 8DIP
|
- | Bulk | Last Time Buy | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 12V ~ 20V | 0.8V, 2.5V | 290mA, 600mA |
|
IR2106SPBF
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IRS23364DSTRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Active | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
