| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

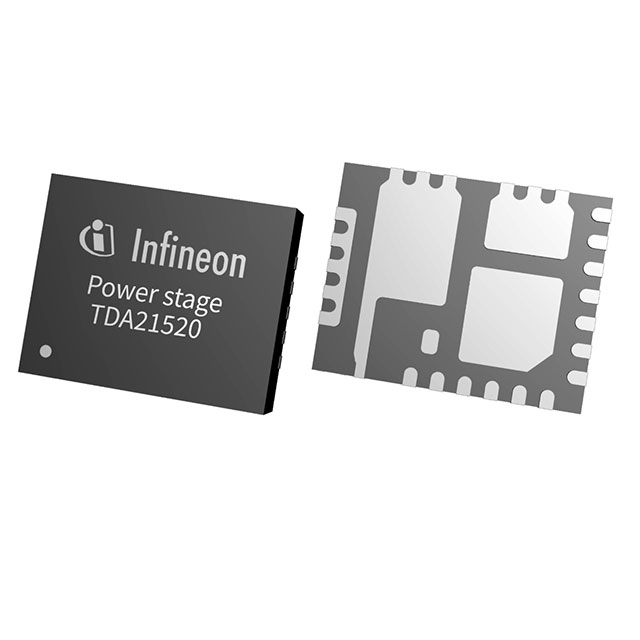

TDA21520AUMA1
IFX POWERSTAGE/DRIVER PG-IQFN-25
|
EiceDRIVER™ | Tape & Reel (TR) | Active | Half-Bridge | Single | 2 | N-Channel MOSFET | 4.25V ~ 16V | 2V, 0.8V | 20A, 20A |
|
IR1169SPBF
IC GATE DRVR LOW-SIDE 8SOIC
|
Advanced Smart Rectifier™ | Tube | Discontinued at | Low-Side | Single | 1 | N-Channel MOSFET | 11V ~ 19V | 2V, 2.25V | 1A, 4A |
|
TDA21107
IC GATE DRVR HALF-BRIDGE DSO8
|
CoreControl™ | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10.8V ~ 13.2V | - | - |
|
IR7304SPBF
IR7304 - 700V HALF-BRIDGE DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA |
|
AUIRS2124S
IC GATE DRVR HIGH-SIDE 8SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 500mA, 500mA |
|
IR2155
IC GATE DRVR HALF-BRIDGE 8DIP
|
- | Tube | Obsolete | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 250mA, 500mA |
|
AUIRS2117S
IC GATE DRVR HIGH-SIDE 8SOIC
|
Automotive, AEC-Q100 | Tube | Obsolete | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 10V ~ 20V | 6V, 9.5V | 290mA, 600mA |
|

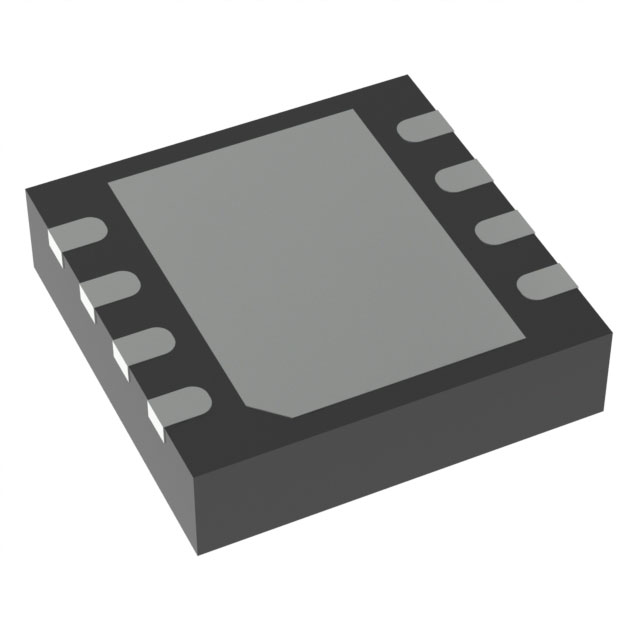

2EDL8013GXUMA1
INT. POWERSTAGE/DRIVER PG-VDSON-
|
EiceDRIVER™ | Tape & Reel (TR) | Not For New Designs | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | - | 5A, 6A |
|
1ED3142MC12HXUMA1
ISOLATED DRIVER
|
- | Tray | Active | - | - | - | - | - | - | - |
|
IR2106PBF
IR2106 - GATE DRIVER
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
AUIRS20162STR
IC GATE DRVR HIGH-SIDE 8SOIC
|
Automotive, AEC-Q100 | Tape & Reel (TR) | Obsolete | High-Side | Single | 1 | N-Channel MOSFET | 4.4V ~ 20V | - | 250mA, 250mA |
|
IR4428
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Obsolete | Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 6V ~ 20V | 0.8V, 2.7V | 2.3A, 3.3A |
