| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM5100BMA/NOPB
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Active | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 2.3V, - | 2A, 2A |
|
LM27222MX
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 6.85V | - | 3A, 4.5A |
|
|
TPS28226D
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tube | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6.8V ~ 8.8V | - | - |
|
UCC27322DG4
IC MOSFET DRIVER SGL HS 9A 8SOIC
|
- | Bulk | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4V ~ 15V | 1.1V, 2.7V | 9A, 9A |
|
|
UCC27425D
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4V ~ 15V | 1V, 2V | 4A, 4A |
|
TPS2812P
IC GATE DRVR LOW-SIDE 8DIP
|
- | Tube | Active | Low-Side | Synchronous | 2 | N-Channel, P-Channel MOSFET | 4V ~ 14V | 1V, 4V | 2A, 2A |
|
LM5110-2SDX
IC GATE DRVR LOW-SIDE 10WSON
|
- | Tape & Reel (TR) | Obsolete | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A |
|
LM5105SD/NOPB
IC GATE DRVR HALF-BRIDGE 10WSON
|
- | Tape & Reel (TR) | Active | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 8V ~ 14V | 0.8V, 2.2V | 1.8A, 1.8A |
|
|
SM72482/NOPB
IC GATE DRVR LOW-SIDE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Low-Side | Independent | 2 | N-Channel MOSFET | 3.5V ~ 14V | 0.8V, 2.2V | 3A, 5A |
|

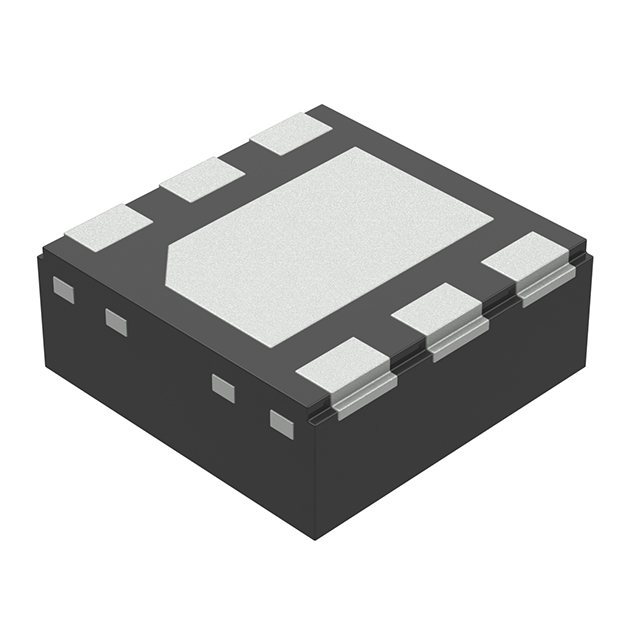

LMG1025QDEERQ1
LOW-SIDE GAN DRIVER AUTO 5V 5/7A
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.75V ~ 5.25V | 1.8V, 1.7V | 7A, 5A |
|
5962-0051401QPA
3-A/3-A DUAL-CHANNEL GATE DRIVER
|
- | Tube | Active | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 5V ~ 35V | 0.8V, 2V | 3A, 3A |
|
LM5114BMF/S7003094
IC GATE DRVR LOW-SIDE SOT23-6
|
- | Tape & Reel (TR) | Active | Low-Side | Single | 1 | IGBT, N-Channel MOSFET | 4V ~ 12.6V | 0.8V, 2.4V | 1.3A, 7.6A |
