| Image | Mfr Part # | Series | Package | Product Status | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR25604SPBF-INF
HIGH AND LOW SIDE DRIVER
|
- | Bulk | Active | High-Side and Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
2ED2104S06FXUMA1
LEVEL SHIFT SOI
|
- | Tape & Reel (TR) | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 1.1V, 1.7V | 290mA, 700mA |
|
IR21814SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Bulk | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR21834SPBF
IC GATE DRVR HALF-BRIDGE 14SOIC
|
- | Bulk | Not For New Designs | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR2136JTR
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 3V | 200mA, 350mA |
|

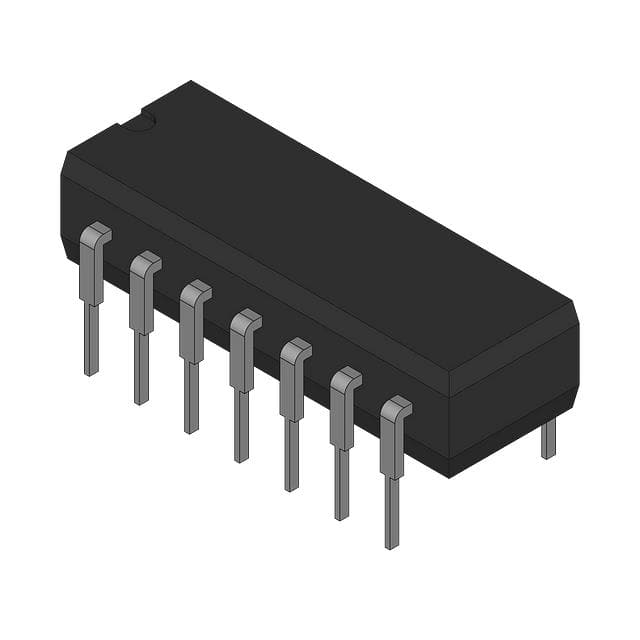

IR21814PBF
HALF BRIDGE BASED MOSFET DRIVER,
|
- | Bulk | Active | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A |
|
IR2108STR
IC GATE DRVR HALF-BRIDGE 8SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA |
|
IR21364JTRPBF
IC GATE DRVR HALF-BRIDGE 44PLCC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 11.5V ~ 20V | 0.8V, 2.5V | 200mA, 350mA |
|

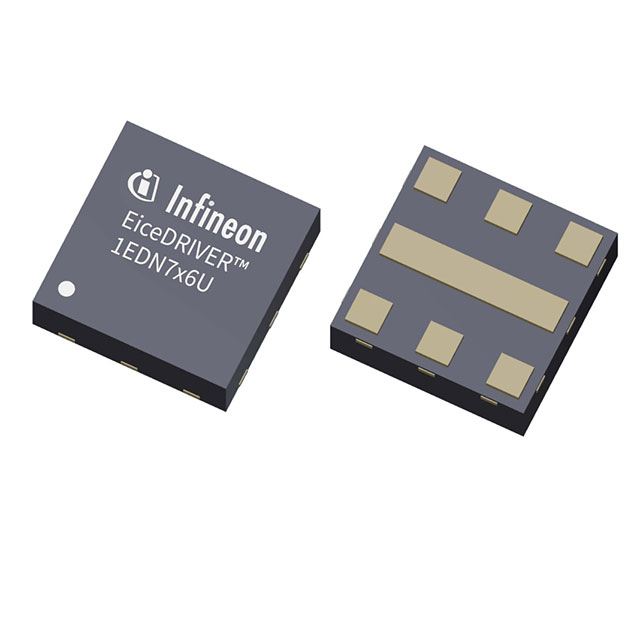

1EDN7116UXTSA1
INT. POWERSTAGE/DRIVER PG-VSON-1
|
* | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
IR2130STR
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
IRS2332DSTRPBF
IC GATE DRVR HALF-BRIDGE 28SOIC
|
- | Tape & Reel (TR) | Obsolete | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 250mA, 500mA |
|
1ED21271S65FXUMA1
1ED21271S65FXUMA1
|
1ED21x7x | Tape & Reel (TR) | Active | High-Side | Single | 1 | SiC MOSFET | 7.2V ~ 22V | 0.8V, 2.4V | 4A, 4A |
