| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

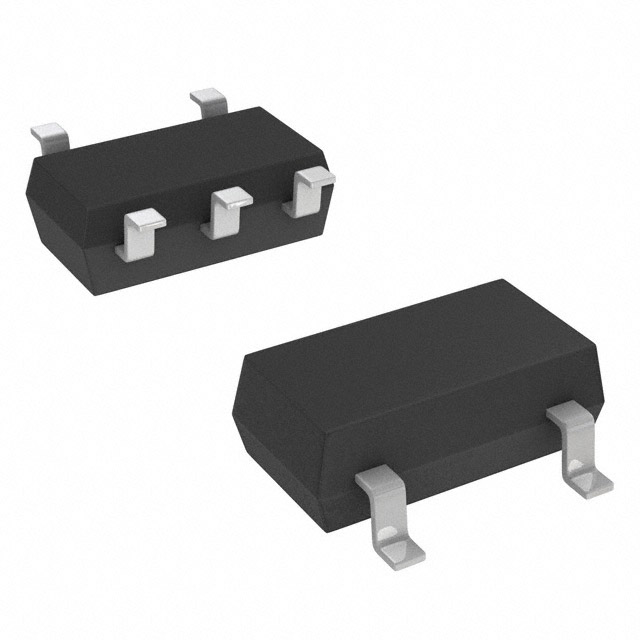

74LX1G32CTR
IC GATE OR 1CH 2-INP SOT323-5
|
74LX | Tape & Reel (TR) | Obsolete | OR Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
74ACT02MTR
IC GATE NOR 4CH 2-INP 14SO
|
74ACT | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
M74HCT04B1R
IC INVERTER 6CH 1-INP 14DIP
|
74HCT | Tube | Obsolete | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
74LX1G05STR
IC INVERTER OD 1CH 1-INP SOT23-5
|
74LX | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 1.65V ~ 5.5V | -, 32mA | - | - |
|
74ACT02TTR
IC GATE NOR 4CH 2-INP 14TSSOP
|
74ACT | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
74AC04TTR
IC INVERTER 6CH 1-INP 14TSSOP
|
74AC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
|
74V1T04STR
IC INVERTER 1CH 1-INP SOT23-5
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
74V1G14CTR
IC INVERTER 1CH 1-INP SOT323-5
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 1 | Schmitt Trigger | 2V ~ 5.5V | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V |
|
|
74LX1G86STR
IC GATE XOR 1CH 2-INP SOT23-5
|
74LX | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
|
M74HCT08RM13TR
IC GATE AND 4CH 2-INP 14SO
|
74HCT | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|

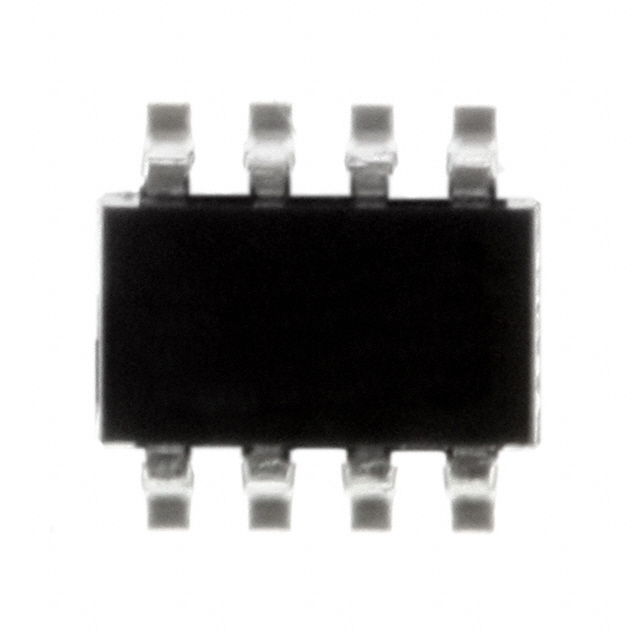

74V2T0ESTR
IC INVERTER 3CH 3-INP SOT23-8
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 3 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
74ACT04TTR
IC INVERTER 6CH 1-INP 14TSSOP
|
74ACT | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
