| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
949DC
IC GATE NAND
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
MM54C02W/883
NOR GATE SERIES, 4-FUNC
|
54C | Bulk | Active | NOR Gate | 2 | - | 3V ~ 15V | 360µA, 360µA | 1.5V ~ 2V | 3.5V ~ 8V |
|
74F27PC
NOR GATE
|
74F | Bulk | Active | NOR Gate | 3 | - | 4.5V ~ 5.5V | 20mA, 1mA | 0.8V | 2V |
|
74LS86SC
XOR GATE, TTL, PDSO14
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
|
54132DM
NAND GATE, TTL
|
54132 | Bulk | Active | NAND Gate | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 800µA, 16mA | 1.1V | 2V |
|

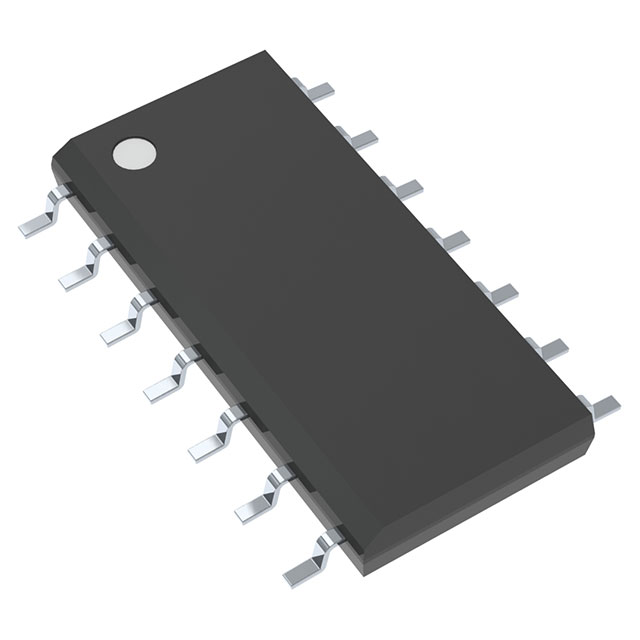

74ACT32SCX
IC GATE OR 4CH 2-INP 14SOIC
|
74ACT | Tape & Reel (TR) | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
MM74HC02MX
IC GATE NOR 4CH 2-INP 14SOIC
|
74HC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
7411PC
AND GATE, 74 SERIES TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
74F02SCX-NS
NOR GATE, F/FAST SERIES, 4 FUNC,
|
74F | Bulk | Active | NOR Gate | 2 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
|
74S30PC
IC GATE NAND 1CH 8-INP 14DIP
|
- | Bulk | Active | NAND Gate | 8 | - | 4.75V ~ 5.25V | - | - | - |
|
MM54HC27J
NOR GATE, HC/UH SERIES, 3-INPUT
|
- | Bulk | Active | NOR Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
74F04SCX-NS
INVERTER, F/FAST SERIES, 6 FUNC,
|
74F | Bulk | Active | Inverter | 1 | Open Collector | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
