| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
74VHC03TTR
IC GATE NAND OD 4CH 2-IN 14TSSOP
|
74VHC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Open Drain | 2V ~ 5.5V | -, 8mA | 0.5V | 1.5V |
|
|
74AC00TTR
IC GATE NAND 4CH 2-INP 14TSSOP
|
74AC | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
M74HC09RM13TR
IC GATE AND OD 4CH 2-INP 14SO
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | Open Drain | 2V ~ 6V | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
|
74AC86TTR
IC GATE XOR 4CH 2-INP 14TSSOP
|
74AC | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
|
74VHCT02ATTR
IC GATE NOR 4CH 2-INP 14TSSOP
|
74VHCT | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
|
74LCX00YMTR
IC GATE NAND 4CH 2-INP 14SO
|
Automotive, AEC-Q100, 74LCX | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|
|
74LVX00TTR
IC GATE NAND 4CH 2-INP 14TSSOP
|
74LVX | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 2V ~ 3.6V | 4mA, 4mA | 0.5V ~ 0.8V | 1.5V ~ 2.4V |
|

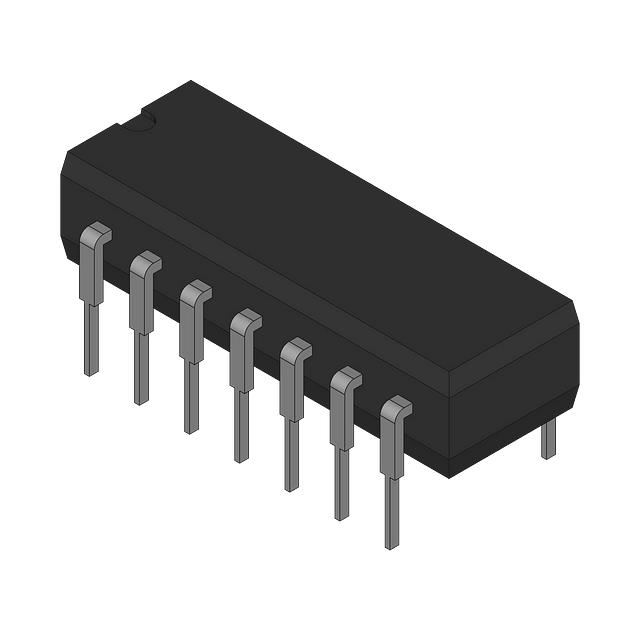

HCF4011BEY
IC GATE NAND 4CH 2-INP 14DIP
|
4000B | Tube | Obsolete | NAND Gate | 2 | - | 3V ~ 20V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
74LCX00MTR
IC GATE NAND 4CH 2-INP 14SO
|
74LCX | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
|

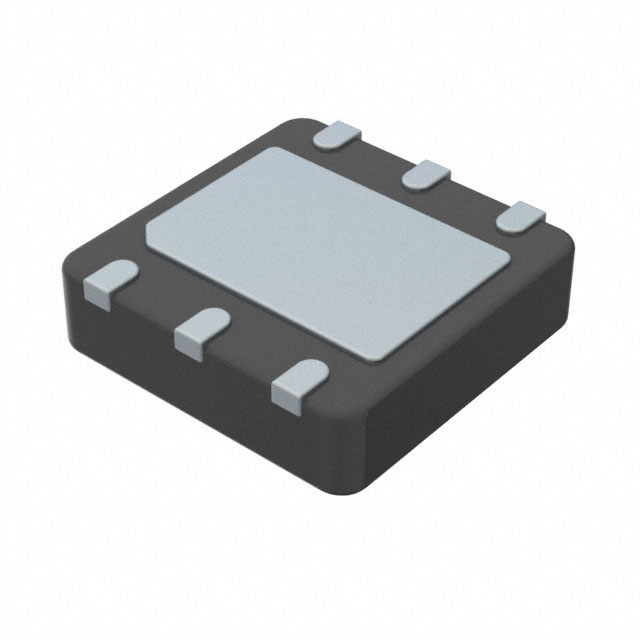

74AUP1G04DTR
IC INVERTER 1CH 1-INP 6DFN
|
74AUP | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 1.2V ~ 3.6V | 10mA, 10mA | 0.7V ~ 0.8V | 1.6V ~ 2V |
|
|
M74HC132B1R
IC GATE NAND 4CH 2IN 14DIP
|
74HC | Tube | Obsolete | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V |
|
74V2T04STR
IC INVERTER 3CH 3-INP SOT23-8
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 3 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
