| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
M74HC132YRM13TR
IC GATE NAND SCHMIT 4CH 2IN 14SO
|
Automotive, AEC-Q100, 74HC | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 2V ~ 6V | 5.2mA, 5.2mA | 0.3V ~ 1.5V | 1.5V ~ 4.2V |
|
|
HCF4093M013TR
IC GATE NAND SCHMIT 4CH 2IN 14SO
|
4000 | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Schmitt Trigger | 3V ~ 20V | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V |
|

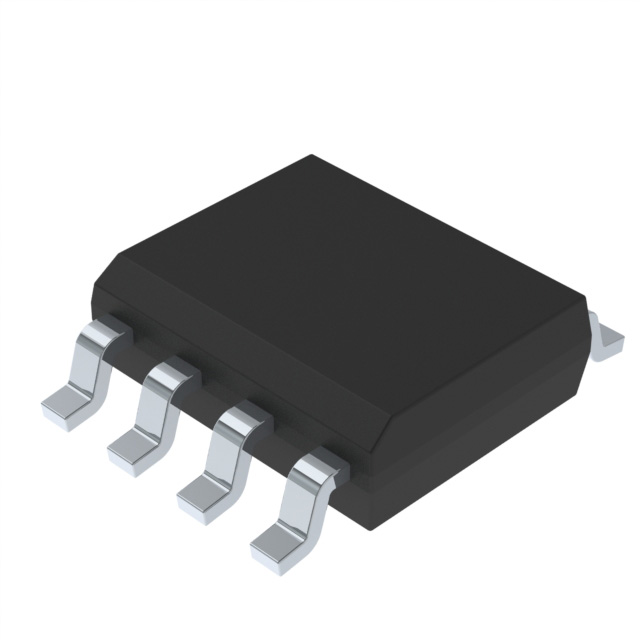

HCF40107M013TR
IC GATE NAND OD 2CH 2-INP 8SO
|
4000B | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | Open Drain | 3V ~ 20V | -, 136mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
HCF4071BEY
IC GATE OR 4CH 2-INP 14DIP
|
4000B | Tube | Obsolete | OR Gate | 2 | - | 3V ~ 20V | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
HCF40107BEY
IC GATE NAND OD 2CH 2 INP
|
4000B | Tube | Obsolete | NAND Gate | 2 | Open Drain | 3V ~ 20V | -, 136mA | 1.5V ~ 4V | 3.5V ~ 11V |
|
|
M74HC32B1R
IC GATE OR 4CH 2-INP 14DIP
|
74HC | Tube | Obsolete | OR Gate | 2 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
74LVX14TTR
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVX | Tape & Reel (TR) | Obsolete | Inverter | 1 | Schmitt Trigger | 2V ~ 3.6V | 4mA, 4mA | 0.9V | 2.2V |
|
|
M74HC11RM13TR
IC GATE AND 3CH 3-INP 14SO
|
74HC | Tape & Reel (TR) | Obsolete | AND Gate | 3 | - | 2V ~ 6V | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V |
|
74V2G04STR
IC INVERTER 3CH 3-INP SOT23-8
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 3 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V | 1.5V |
|
74V1G05STR
IC INVERTER OD 1CH 1-INP SOT23-5
|
74V | Tape & Reel (TR) | Obsolete | Inverter | 1 | Open Drain | 2V ~ 5.5V | -, 8mA | 0.5V | 1.5V |
|
|
M74HCT14RM13TR
IC INVERT SCHMITT 6CH 1-INP 14SO
|
74HCT | Tape & Reel (TR) | Obsolete | Inverter | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V |
|
|
74LCX04TTR
IC INVERTER 6CH 1-INP 14TSSOP
|
74LCX | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 2V ~ 3.6V | 24mA, 24mA | 0.8V | 2V |
