| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-8776601RA
SN54AS804B HEX 2-INPUT NAND DRIV
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LS00NS6
QUAD 2-INPUT NAND GATES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN7425N
IC GATE NOR 2CH 4-INP 14DIP
|
7400 | Tube | Active | NOR Gate | 4 | Strobe | 4.75V ~ 5.25V | 800µA, 16mA | 0.8V | 2V |
|
SN74ALVC04NSRG4
IC INVERTER 6CH 1-INP 14SOP
|
74ALVC | Tape & Reel (TR) | Obsolete | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

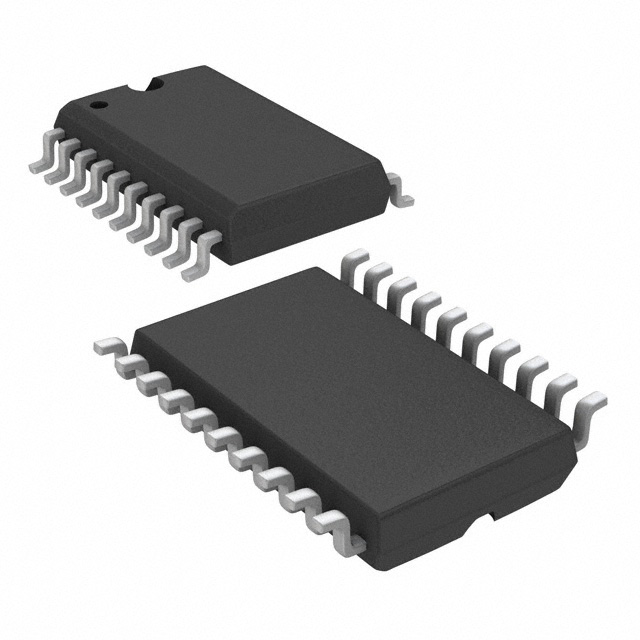

SN74AS808BDWR
IC GATE AND 6CH 2-INP 20SOIC
|
74AS | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
SN74S65DR
AND-OR-INVERT GATE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74ALVC10DR
IC GATE NAND 3CH 3-INP 14SOIC
|
74ALVC | Tape & Reel (TR) | Active | NAND Gate | 3 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74AS1032AN
IC GATE OR 4CH 2-INP 14DIP
|
74AS | Bulk | Active | OR Gate | 2 | - | 4.5V ~ 5.5V | 48mA, 48mA | 0.8V | 2V |
|
SN74ALS15AD
AND GATE, ALS SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74AS00DB
IC GATE NAND 4CH 2-INP 14SSOP
|
74AS | Bulk | Active | NAND Gate | 2 | - | 4.5V ~ 5.5V | 2mA, 20mA | 0.8V | 2V |
|
|
JM54AC20S2A-RH
54AC20 - DUAL 4-INPUT NAND GATE
|
54AC | Bulk | Active | NAND Gate | 4 | - | 2V ~ 6V | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V |
|
SN74S04D
IC INVERTER 6CH 1-INP 14SOIC
|
74S | Tube | Active | Inverter | 1 | - | 4.75V ~ 5.25V | 1mA, 20mA | 0.8V | 2V |
