| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN54LS10J
IC GATE NAND 3CH 3-INP 14CDIP
|
54LS | Tube | Active | NAND Gate | 3 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74AHC02DR
IC GATE NOR 4CH 2-INP 14SOIC
|
74AHC | Tape & Reel (TR) | Active | NOR Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
|
SN54LS266J
IC GATE XNOR 4CH 2-INP 14CDIP
|
54LS | Tube | Active | XNOR (Exclusive NOR) | 2 | Open Collector | 4.5V ~ 5.5V | 100µA, 4mA | 0.7V | 2V |
|

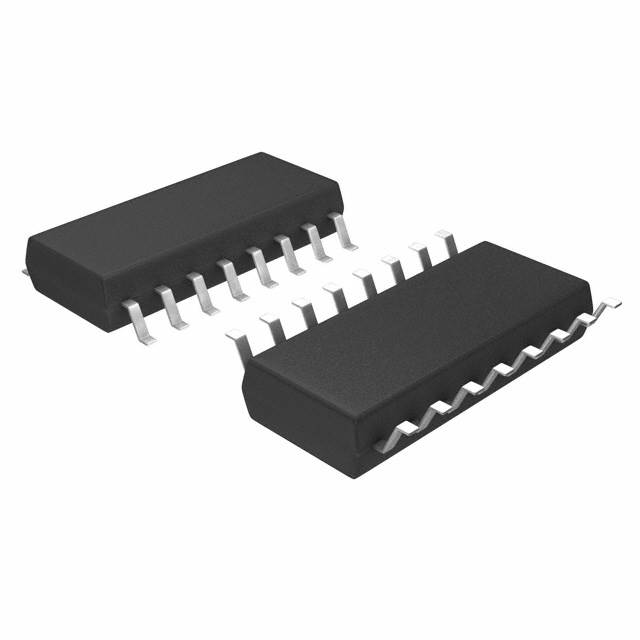

74ACT11000NSR
IC GATE NAND 4CH 2-INP 16SO
|
74ACT | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SNJ54F02J
54F02 QUADRUPLE 2-INPUT POSITIVE
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LS14DBR
IC INV SCHMITT 6CH 1-IN 14SSOP
|
74LS | Tape & Reel (TR) | Active | Inverter | 1 | Schmitt Trigger | 4.75V ~ 5.25V | 400µA, 8mA | 0.5V | 1.9V |
|
SN74AHCT1G08DCK3
IC GATE AND 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Active | AND Gate | 2 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
54F20DM
NAND GATE, F/FAST SERIES, 2 FUNC
|
- | Bulk | Active | NAND Gate | 4 | - | 4.5V ~ 5.5V | 1mA, 20mA | 0.8V | 2V |
|
SN74AHC04PW
IC INVERTER 6CH 1-INP 14TSSOP
|
74AHC | Tube | Discontinued at | Inverter | 1 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LS132N
IC GATE NAND 4CH 2IN 14DIP
|
74LS | Tube | Active | NAND Gate | 2 | Schmitt Trigger | 4.75V ~ 5.25V | 400µA, 8mA | 0.5V | 1.9V |
|
SN74AHC1G00DCKRE4
IC GATE NAND 1CH 2-INP SC70-5
|
74AHC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 2V ~ 5.5V | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V |
|
SN74LVC1G00DCKT
IC GATE NAND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Active | NAND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
