| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM38510/05352BEA
CMOS QUAD AND/OR SELECT GATE 16-
|
- | Tube | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G98DCKTG4
IC CONFIG MULTI FUNCTION SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LVC3G98PWRQ1
AUTOMOTIVE, THREE-CHANNEL CONFIG
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 24mA, 24mA | 1.1V ~ 3.6V |
|
74LVC1G3208DBVRG4
IC SGL 3IN OR/AND GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
JM38510/07402BDA
4-2-3-2 INPUT AND-OR-INVERT GATE
|
54S | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
|
CD4068BMT
IC 8INPUT NAND/AND GATE 14-SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G58YZPR
IC MULT-FUNCTION GATE 6DSBGA
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74ACT3G99DGSRQ1
AUTOMOTIVE 4.5V TO 5.5V, ULTRA-C
|
74ACT | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | Yes | Tri-State | 24mA, 24mA | 4.5V ~ 5.5V |
|

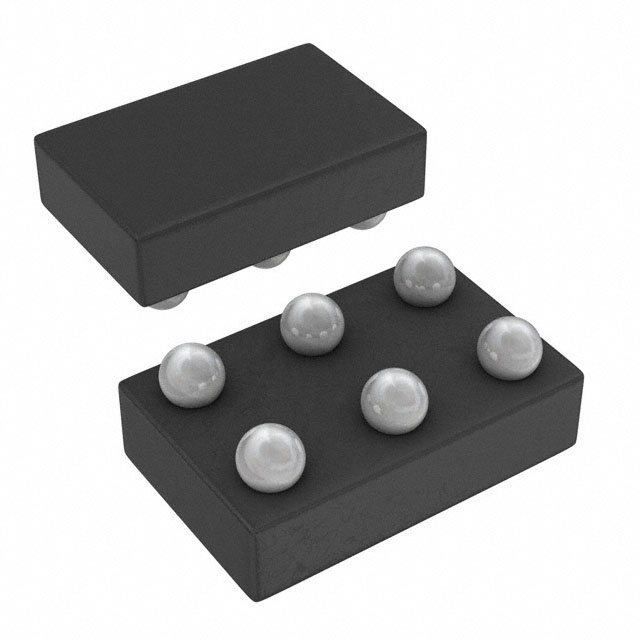

SN74AUP1G97YEPR
IC GATE MULT-FUNC CONFIG 6-DSBGA
|
74AUP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
JM38510/30003SDA
INVERTER, LS SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74AUP1G98YZPR
IC CONFIG MULTI-FUNC GATE 6DSBGA
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G0832DCKT
IC 3INPUT OR/AND GATE SC70-6
|
74LVC | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
