| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4078BPWRE4
IC 8INPUT NOR/OR GATE 14-TSSOP
|
4000B | Tape & Reel (TR) | Discontinued at | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74AUP1G98DCKR
IC CONFIG MULT-FUNC GATE SC70-6
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74AUP1G99DCUT
IC GATE MULT-FUNC CONF 3ST US8
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G3208YZTR
IC SGL 3IN OR/AND GATE 6DSBGA
|
74LVC | Tape & Reel (TR) | Discontinued at | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4086BNSRG4
IC EXPND AND-ORINV GATE 14SO
|
4000B | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LS51NSR
IC AND-OR-INVERT GATE 14SO
|
74LS | Tape & Reel (TR) | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 400µA, 8mA | 4.75V ~ 5.25V |
|

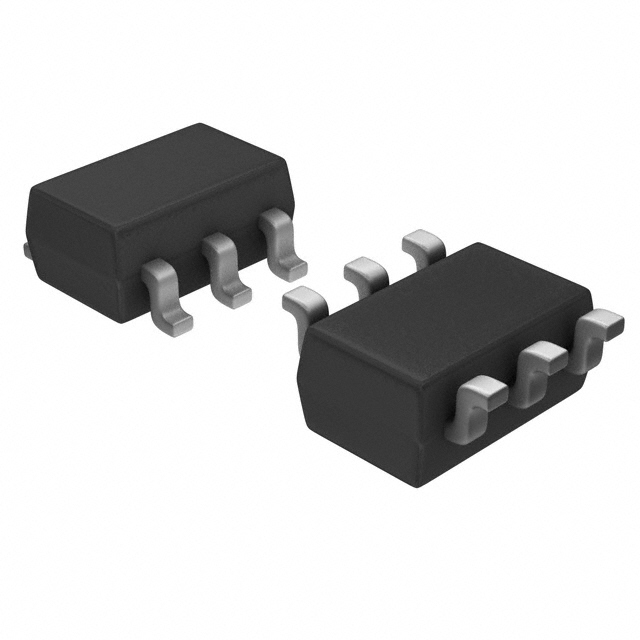

SN74AUP1G58DBVT
IC GATE MULT-FUNC CONFIG SOT23-6
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
54F64FMQB
AND-OR-INVERT GATE
|
54F | Bulk | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
|
CD4085BM
IC DUAL AND-ORINV GATE 14-SOIC
|
4000B | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SNJ5454J
4-WIDE AND-OR-INVERT GATES 14-CD
|
- | Tube | Active | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V |
|
CD4572UBMTG4
IC CMOS HEX GATE 4INV 16-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4078BM96
IC GATE NOR/OR 8INPUT 14SOIC
|
4000B | Tape & Reel (TR) | Active | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
