| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLVC2G100WBQBRQ1
AUTOMOTIVE TWO-CHANNEL 1.1V-TO-3
|
- | - | - | - | - | - | - | - | - | - |
|
74LVC1G3208MDBVTEP
HIREL DEVICE FOR SN74LVC1G3208DB
|
74LVC | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
M38510/07401BCA
AND-OR-INVERT GATES 14-CDIP -55
|
54S | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
|
|
CD4019BF3A
CMOS QUAD AND/OR SELECT GATE 16-
|
4000B | Tube | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
|
SN54S51J
AND-OR-INVERT GATES 14-CDIP -55
|
54S | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
|
CD4086BM96G4
IC EXPND AND-ORINV GATE 14-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
|
SN74LV8151PWR-P
PROTOTYPE
|
74LV | Bulk | Active | Configurable Multiple Function | 3 | - | No | - | 12mA, 12mA | 2V ~ 5.5V |
|
SN74LVC1G99DCTRG4
IC CONFIG MULTI-FUNC GATE SM8
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
JM38510/30401BCA
AND-OR-INVERT GATES 14-CDIP -55
|
54LS | Tube | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 4mA, 400µA | 4.5V ~ 5.5V |
|

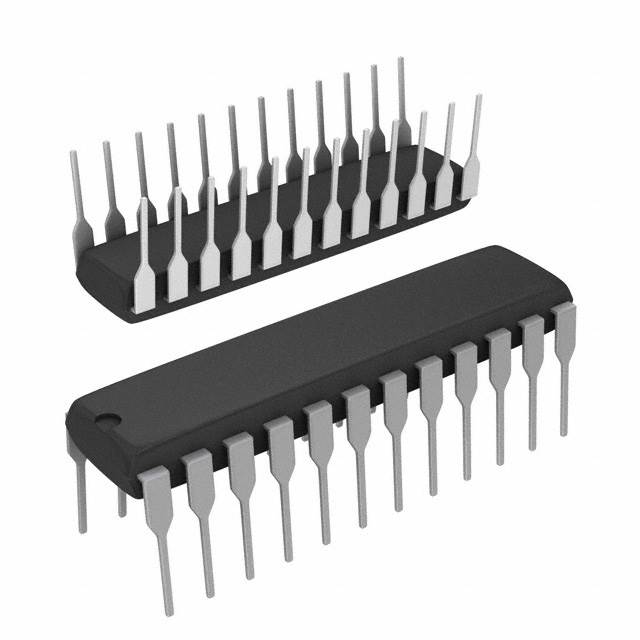

SN74LV8151NT
IC BUFFER INVERTER 10BIT 24DIP
|
74LV | Tube | Obsolete | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V |
|
SN74LVC1G98YEPR
IC CONFIG MULT-FUNC GATE 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|

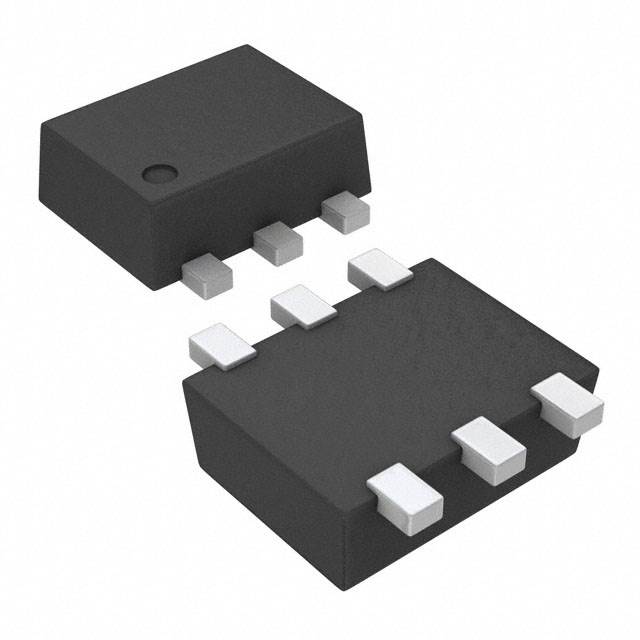

SN74AUP1G97DRLRG4
IC CONF MULTI-FUNC GATE SOT-563
|
74AUP | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
