| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4085BF
CMOS DUAL 2-WIDE 2-INPUT AND-OR-
|
- | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4085BM96
IC DUAL AND-ORINV GATE 14-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G58DRLR
IC CONFIG MULTI-FUNC GATE SOT563
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
SN200472N
HEX INVERTER OC
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74AUP1G98DSFR
IC GATE MULT-FUNC CONFIG 6SON
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G97DBVRE4
IC MULTI-FUNC GTE CONFIG SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4048BMT
IC 8IN GATE EXPND MULTI 16-SOIC
|
4000B | Tape & Reel (TR) | Discontinued at | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G57YZPR
IC MULT-FUNCTION GATE 6DSBGA
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
SN74AUP1G98YFPR
IC GATE MULT-FUNC CONFIG 6DSBGA
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|

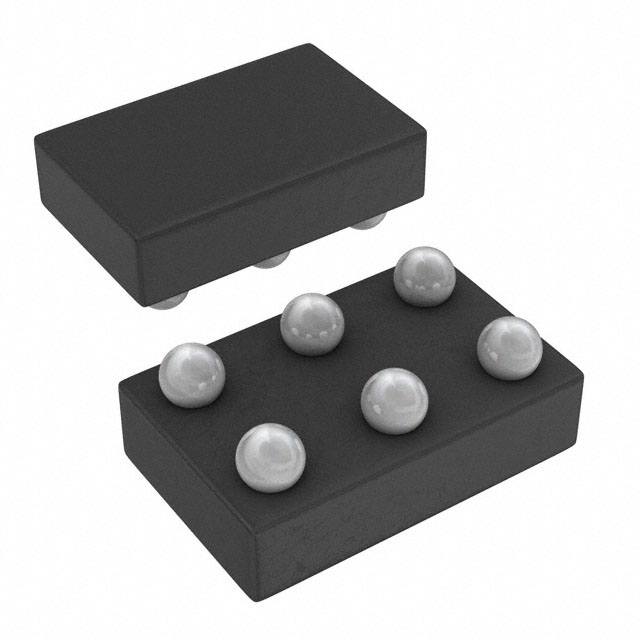

SN74AUP1G58YEPR
IC GATE MULT-FUNC CONFIG 6-DSBGA
|
74AUP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G99DCTT
IC CONFIG MULTIPLE FUNCT SM8
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4048BE
IC 8-IN GATE EXPND MULTI 16-DIP
|
4000B | Tube | Active | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
