| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4085BE
IC 2-IN AND-OR-INV GATE 14-DIP
|
4000B | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G99DCUR
IC CONFIG MULT-FUNC GATE 8VSSOP
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74AUP1G97DRYR
IC MULT-FUNC CONFIG GATE LP 6SON
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
5416FM
INVERTER, TTL
|
- | Bulk | Active | - | - | - | - | - | - | - |
|

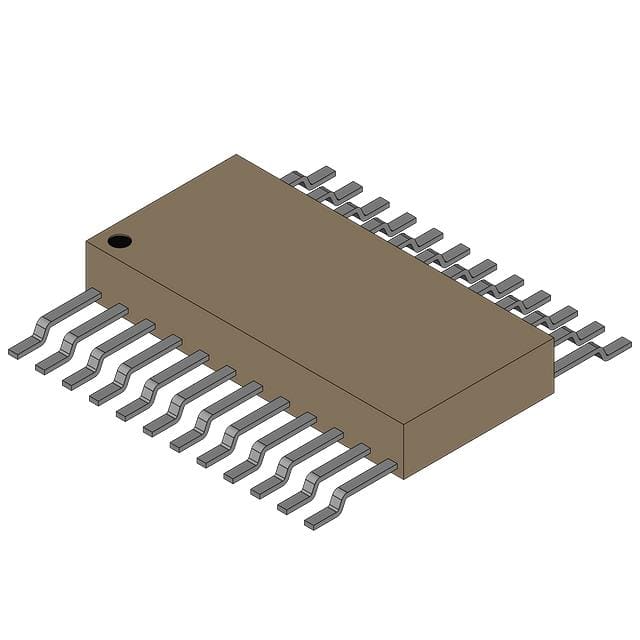

100101W-MIL
OR/NOR GATE, 100K SERIES
|
- | Bulk | Obsolete | - | - | - | - | - | - | - |
|
SNJ54H87J
INVERTER/BUFFER, TTL
|
* | Bulk | Active | - | - | - | - | - | - | - |
|

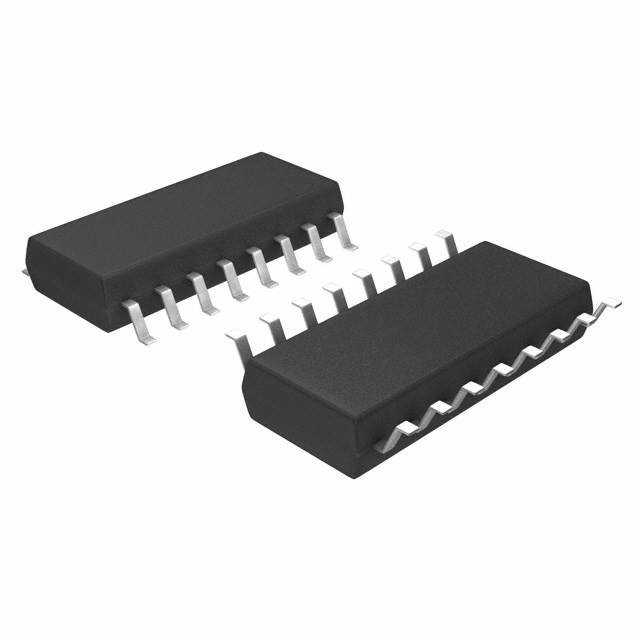

CD4019BNSR
IC QUAD AND/OR SELECT GATE 16SO
|
4000B | Tape & Reel (TR) | Active | AND/OR Gate | 4 | 2 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G98DBVR
IC CONFIG MULT-FUNC GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|

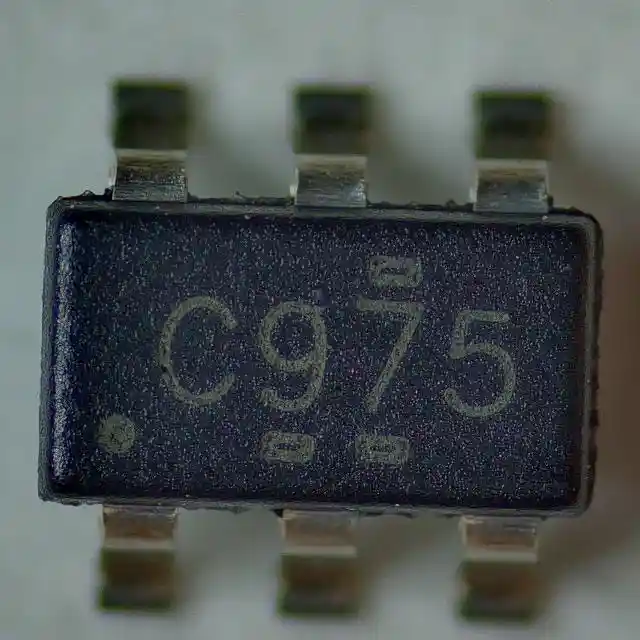

SN74LVC1G97DBVR
IC CONFIG MULT-FUNC GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
100118FC
OR-AND/-INVERT GATE, 100K SERIES
|
100118 | Bulk | Active | AND/OR Gate | 1 | 19 Input (5, 4, 4, 4, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
CD4078BPWR
IC CMOS 8-IN NOR/OR GATE 14TSSOP
|
4000B | Tape & Reel (TR) | Active | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4068BEG4
IC 8INPUT NAND/AND GATE 14-DIP
|
4000B | Tube | Discontinued at | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
