| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AC3G99PWR
1.5V TO 6V, ULTRA-CONFIGURABLE M
|
74AC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | Yes | Tri-State | 24mA, 24mA | 1.5V ~ 6V |
|
CD4086BPWE4
IC EXPND AND-ORINV GATE 14TSSOP
|
4000B | Tube | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4572UBM96E4
IC CMOS HEX GATE 4INV 16-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
SNJ54LS51W
AND-OR-INVERT GATES 14-CFP -55 T
|
54LS | Tube | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 4mA, 400µA | 4.5V ~ 5.5V |
|
SN74AUP1G99DCUTG4
IC CONFIG MULTI FUNCTION US8
|
74AUP | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G57DCKRG4
IC MULTI-FUNC GATE CONFIG SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
100102FC
OR/NOR GATE, 100K SERIES
|
F100102 | Bulk | Active | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
SN74AUP1G97YZPR
IC CONFIG MULTI-FUNC GATE 6DSBGA
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
|
SN74LVC1G57YEPR
IC CONFIG MULTI FUNCTION 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|

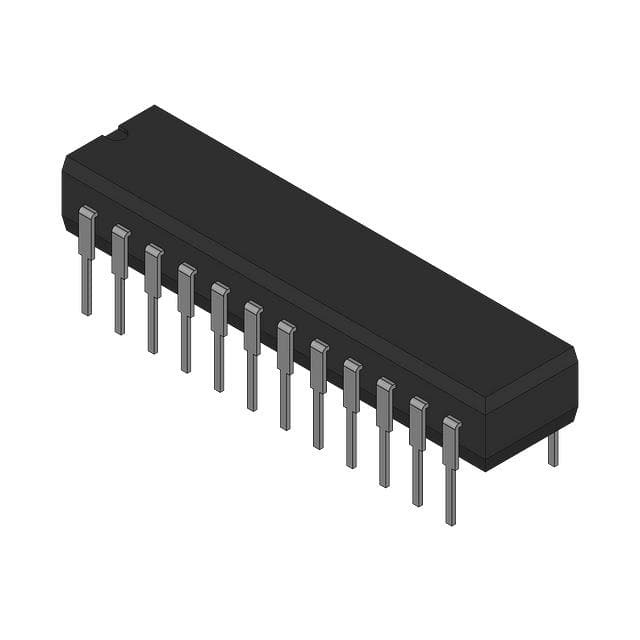

100304J-QMLV
100304 - AND/NAND GATE, 100K SER
|
- | Bulk | Active | AND/NAND Gate | - | - | - | - | - | -4.2V ~ -5.7V |
|
SN74LVC3G57PWR
THREE-CHANNEL CONFIGURABLE MULTI
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 24mA, 24mA | 1.1V ~ 3.6V |
|
|
JM38510/07402BCA
4-2-3-2 INPUT AND-OR-INVERT GATE
|
54S | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
