| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G97DCKRG4
IC MULTI-FUNC GATE CONFIG SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4078BE-NG
PROTOTYPE
|
- | Bulk | Active | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4085BPW
IC DUAL AND-ORINV GATE 14-TSSOP
|
4000B | Tube | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4085BPWR
IC 2-IN AND-OR-INV GATE 14-TSSOP
|
4000B | Tape & Reel (TR) | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4572UBPWE4
IC CMOS HEX GATE 4INV 16-TSSOP
|
4000B | Tube | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4048BPWRE4
IC 8IN GATE EXPND MULTI 16TSSOP
|
4000B | Tape & Reel (TR) | Obsolete | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
|
CD4068BF
CMOS 8-INPUT NAND/AND GATE 14-CD
|
4000B | Tube | Active | AND/NAND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
74LVC1G3208DBVTG4
IC SGL 3IN OR/AND GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4086BM96E4
IC EXPND AND-ORINV GATE 14-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|

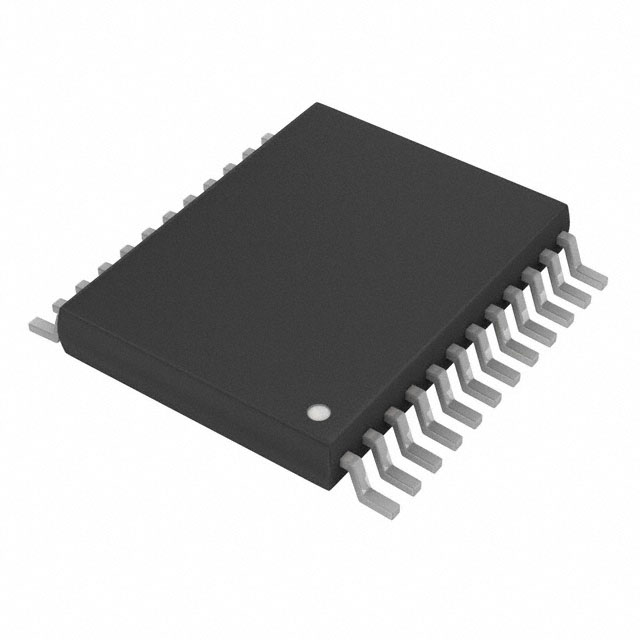

SN74LV8151DGVR
IC BUFFER INVERTER 10BIT 24TVSOP
|
74LV | Tape & Reel (TR) | Active | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V |
|
SN74LVC1G97DCKTG4
IC CONFIG MULTI FUNCTION SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
M38510/07402BCA
4-2-3-2 INPUT AND-OR-INVERT GATE
|
54S | Tube | Active | AND/OR/INVERT Gate | 1 | 11 Input (4, 2, 3, 2) | No | Single-Ended | 20mA, 1mA | 4.5V ~ 5.5V |
