| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4572UBEG4
IC CMOS HEX GATE 4INV 16-DIP
|
4000B | Tube | Discontinued at | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
74LVC1G3208DBVRE4
IC 3IN POS OR-AND GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Discontinued at | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LVC1G98YEAR
IC CONFIG MULT-FUNC GATE 6-DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|

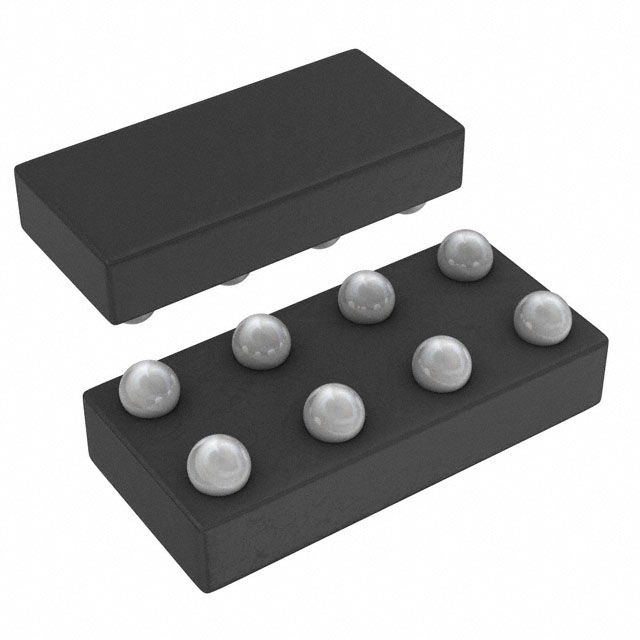

SN74LVC1G99YZPR
IC GATE CONFIG MULTI-FUNC 8DSBGA
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
SN74LVC1G58YEAR
IC MULTI-FUNC GATE CONFIG 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
SN74LVC1G0832YZPR
IC SNGL 3-IN POS-AND-OR 6-DSBGA
|
74LVC | Tape & Reel (TR) | Active | AND/OR Gate | 1 | 3 Input (2, 1) | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4048BPWR
IC 8IN GATE EXPND MULTI 16TSSOP
|
4000B | Tape & Reel (TR) | Obsolete | Multifunction Expandable | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74LVC1G58DCKRG4
IC MULTI-FUNC GATE CONFIG SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74AUP1G98DRLR
IC CONFIG MULTI-FUNC GATE SOT563
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74LVC1G58DRYR
IC CONFIG MULTI-FUNC GATE 6SON
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74S51DR
IC DUA AND-OR-INVERT GATE 14SOIC
|
74S | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 1mA, 20mA | 4.75V ~ 5.25V |
|
SN74LVC1G58DBVR
IC MULT-FUNCTION GATE SOT23-6
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
