| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G98DSFR
IC CONFIG MULTI-FUNC GATE 6SON
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LVC1G97YZPR
IC CONFIG MULT-FUNC GATE 6-DSBGA
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LS51N
IC 2-IN AND-OR-INV GATE 14-DIP
|
74LS | Tube | Active | AND/OR/INVERT Gate | 2 | 10 Input (3, 3, 2, 2) | No | Single-Ended | 400µA, 8mA | 4.75V ~ 5.25V |
|
|
SN74AUP1G57DSFR
IC GATE MULT-FUNC CONFIG 6SON
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74AUP1G99YZPR
IC MULTI-FUNC GATE 3ST 8-DSBGA
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V |
|
CD4068BM96
IC NAND/AND GATE 8-IN 14-SOIC
|
4000B | Tape & Reel (TR) | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74AUP1G58DRYR
IC GATE MULT-FUNC CONFIG 6SON
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|

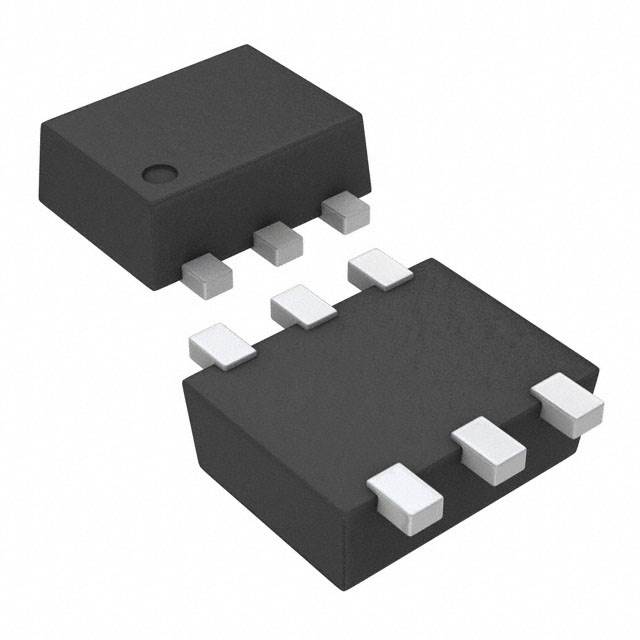

SN74LVC1G57DRLR
IC CONFIG MULT FUNCTION SOT563
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
|
SN74LVC1G97DRLR
IC CONFIG MULTI-FUNC GATE SOT563
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LVC1G99QDCURQ1
IC CONFIG MULT-FUNC GATE US8
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
CD4085BMT
IC DUAL AND-ORINV GATE 14-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4068BM
IC 8INPUT NAND/AND GATE 14-SOIC
|
4000B | Tube | Active | NAND/AND Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
