| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

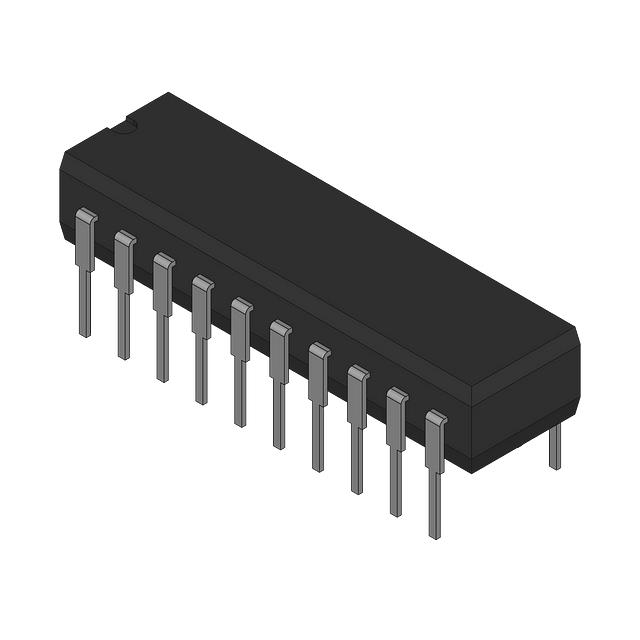

SN74LVCZ240ANS
IC INVERTER DUAL 4-INPUT 20SO
|
74LVCZ | Bulk | Active | - | - | - | - | - | - | - |
|
100107J-MIL
XOR/XNOR GATE, 100K SERIES
|
- | Bulk | Active | XOR/XNOR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
SN74LVC1G97QDCKRQ1
IC CONFIG MULTI-FUNC GATE SC70-6
|
Automotive, AEC-Q100, 74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
100107DC
XOR/XNOR GATE, 100K SERIES
|
- | Bulk | Active | XOR/XNOR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
SN74LVC1G99DCUT
IC CONFIG MULT-FUNC GATE 8VSSOP
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
100117W-MIL
OR-AND/-INVERT GATE, 100K SERIES
|
- | Bulk | Active | AND/OR Gate | 3 | 12 Input (2, 2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
|
100102DCQR
OR/NOR GATE, 100K SERIES
|
F100102 | Bulk | Obsolete | NOR/OR Gate | 5 | 10 Input (2, 2, 2, 2, 2) | No | Differential | - | -4.2V ~ -5.7V |
|
SN700546DR
HEX INVERTER OC
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74AUP1G98DCKT
IC GATE MULT-FUNC CONFIG SC70-6
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
|
100141DC
PARALLEL IN/OUT, 100K SERIES
|
- | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74LVC1G58DCKR
IC MULT-FUNCTION GATE SC70-6
|
74LVC | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74AUP1G57YFPR
IC GATE MULT-FUNC CONFIG 6DSBGA
|
74AUP | Tape & Reel (TR) | Active | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
