| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Circuits | Number of Inputs | Schmitt Trigger Input | Output Type | Current - Output High, Low | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G99DCUTE4
IC CONFIG MULTIPLE FUNCT US8
|
74LVC | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 4 | No | Tri-State | 32mA, 32mA | 1.65V ~ 5.5V |
|
SN74LVC1G58DCKRE4
IC MULTI-FUNC GATE CONFIG SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Single-Ended | 32mA, 32mA | 1.65V ~ 5.5V |
|
SNJ5450J
DUAL 2-WIDE 2-INPUT AND-OR-INVER
|
- | Tube | Active | AND/OR/INVERT Gate | 2 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V |
|
|
SN5454J
4-WIDE AND-OR-INVERT GATES 14-CD
|
- | Tube | Active | AND/OR/INVERT Gate | 1 | 8 Input (2, 2, 2, 2) | No | Single-Ended | 16mA, 400µA | 4.5V ~ 5.5V |
|
CD4572UBMTE4
IC CMOS HEX GATE 4INV 16-SOIC
|
4000B | Tape & Reel (TR) | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
CD4078BPWE4
IC 8INPUT NOR/OR GATE 14-TSSOP
|
4000B | Tube | Discontinued at | NOR/OR Gate | 1 | 8 | No | Single-Ended | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74AUP1G99DCURG4
IC CONFIG MULTI FUNCTION US8
|
74AUP | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V |
|

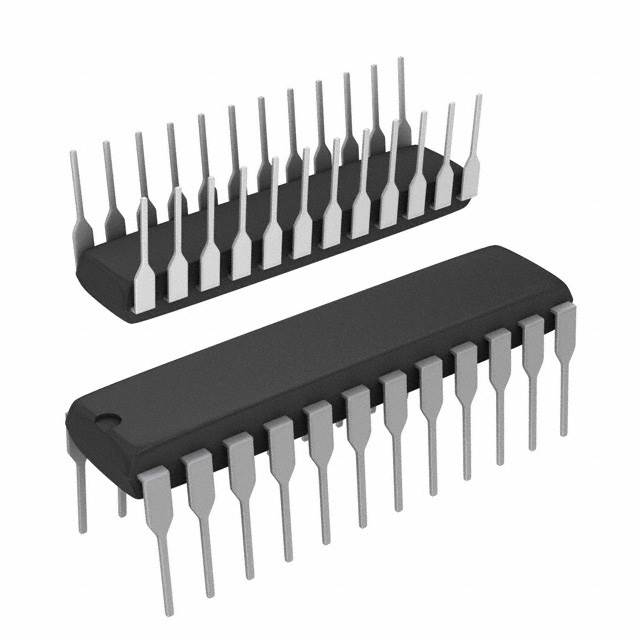

SN74LV8151NTG4
IC BUFFER INVERTER 10BIT 24DIP
|
74LV | Tube | Obsolete | Buffer/Inverter | 1 | 10 | No | Single-Ended | 12mA, 12mA | 2V ~ 5.5V |
|
SN74AC3G99WRKSRQ1
AUTOMOTIVE, 1.5V TO 6V, ULTRA-CO
|
74AC | Tape & Reel (TR) | Active | - | - | - | - | - | - | - |
|
CD4572UBPWG4
IC CMOS HEX GATE 4INV 16-TSSOP
|
4000B | Tube | Obsolete | NOR/NAND/INVERT Gate | 6 | 8 Input (1, 1, 2, 2, 1, 1) | No | Differential | 6.8mA, 6.8mA | 3V ~ 18V |
|
SN74AUP1G97DBVTG4
IC CONFIG MULTI FUNCTION SOT23-6
|
74AUP | Tape & Reel (TR) | Discontinued at | Configurable Multiple Function | 1 | 3 | Yes | Single-Ended | 4mA, 4mA | 0.8V ~ 3.6V |
|
SN74AUP1G99DCUTE4
IC GATE MULT-FUNC CONF 3ST US8
|
74AUP | Tape & Reel (TR) | Obsolete | Configurable Multiple Function | 1 | 3 | No | Tri-State | 4mA, 4mA | 0.8V ~ 3.6V |
