| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74LVC1G38DCKRG4
IC GATE NAND OD 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Open Drain | 1.65V ~ 5.5V | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SNJ54LS21W
IC GATE AND 2CH 4-INP 14CFP
|
54LS | Tube | Active | AND Gate | 4 | - | 4.5V ~ 5.5V | 400µA, 4mA | 0.7V | 2V |
|
SN74LVC2GU04YEPR
IC INVERTER 2CH 2-INP 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
74ACT11000DRG4
IC GATE NAND 4CH 2-INP 16SOIC
|
74ACT | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
SN74LVC2G04DCKRE4
IC INVERTER 2CH 2-INP SC70-6
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74LVC06AMDREP
IC INVERTER OD 6CH 1-INP 14SOIC
|
74LVC | Tape & Reel (TR) | Active | Inverter | 1 | Open Drain | 1.65V ~ 3.6V | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SN74ACT05WBQARQ1
AUTOMOTIVE, 6-CHANNEL INVERTER W
|
74ACT | Tape & Reel (TR) | Active | Inverter | 6 | Open Drain | 4.5V ~ 5.5V | -, 24mA | 0.8V | 2V |
|
SN74LVC1G08YZAR
IC GATE AND 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | AND Gate | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | - | - |
|
|
SN74LV4T00PWR
IC GATE NAND 4CH 2-INP 14TSSOP
|
- | Tape & Reel (TR) | Active | NAND Gate | 2 | Schmitt Trigger | 1.6V ~ 5.5V | 8mA, 8mA | 0.5V ~ 0.85V | 1.1V ~ 2V |
|
74LVC1G132DBVRG4
IC GATE NAND 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|

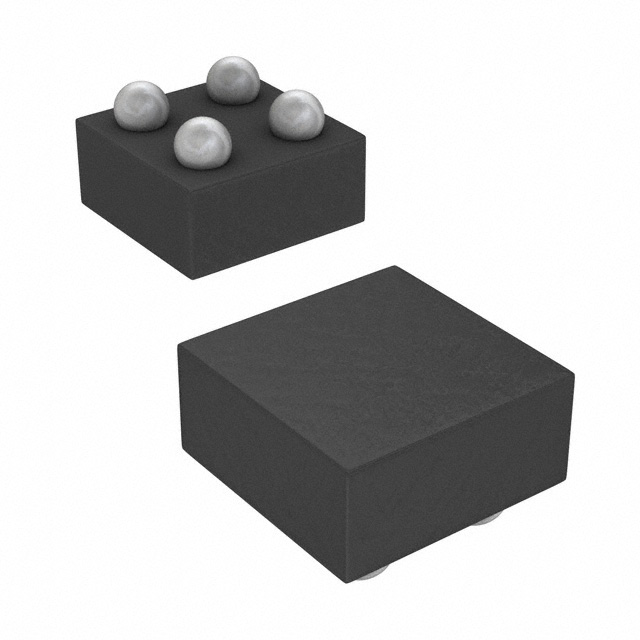

SN74LVC1G14YZTR
IC INVERT SCHMITT 1CH 1IN 4DSBGA
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74ACT05PWRQ1
AUTOMOTIVE, 6-CHANNEL INVERTER W
|
74ACT | Tape & Reel (TR) | Active | Inverter | 6 | Open Drain | 4.5V ~ 5.5V | -, 24mA | 0.8V | 2V |
