| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

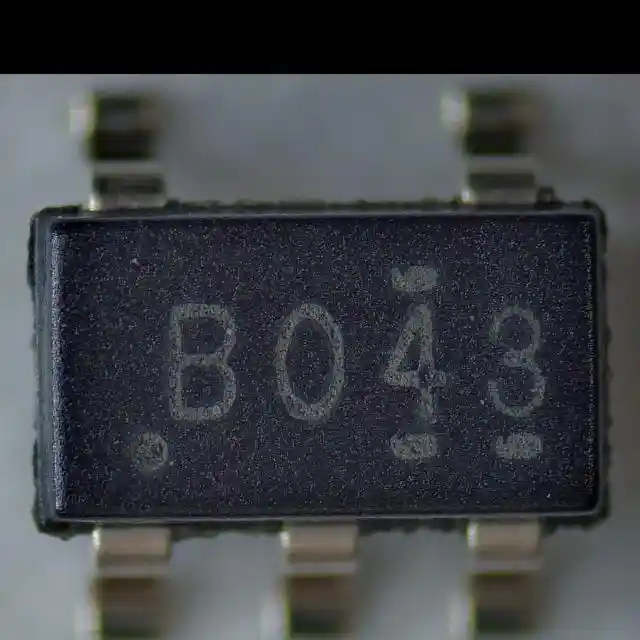

SN74AHCT1G04DBVR
IC INVERTER 1CH 1-INP SOT23-5
|
74AHCT | Tape & Reel (TR) | Active | Inverter | 1 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
54LS28LM
QUAD 2-INPUT NOR BUFFERS
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC14APWRG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
54LS10LM
NAND GATE, LS SERIES, 3 FUNC, 3-
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
SN74LVC1G14DCKTG4
IC INVERT SCHMITT 1CH 1IN SC70
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74LVC1G86YEPR
IC GATE XOR 1CH 2-INP 5DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

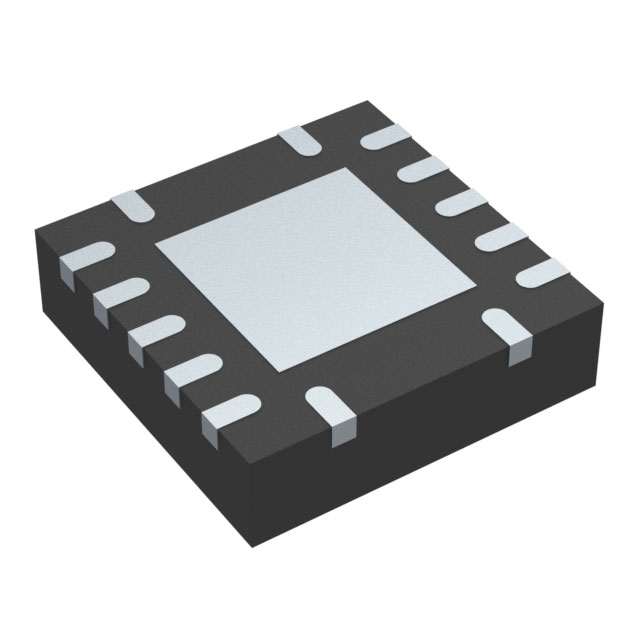

SN74LVC86ARGYRG4
IC GATE XOR 4CH 2-INP 14VQFN
|
74LVC | Tape & Reel (TR) | Discontinued at | XOR (Exclusive OR) | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
CD74HCT04MT
IC INVERTER 6CH 1-INP 14SOIC
|
74HCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74LVC14APWE4
IC INV SCHMITT 6CH 1-IN 14TSSOP
|
74LVC | Tube | Active | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
74LVC1G132DCKRG4
IC GATE NAND 1CH 2-INP SC70-5
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
CD74HCT30E
IC GATE NAND 1CH 8-INP 14DIP
|
74HCT | Tube | Active | NAND Gate | 8 | - | 4.5V ~ 5.5V | 4mA, 4mA | 0.8V | 2V |
|
SN74LVC08APWTG4
IC GATE AND 4CH 2-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | AND Gate | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
