| Image | Mfr Part # | Series | Package | Product Status | Logic Type | Number of Inputs | Features | Voltage - Supply | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G132DBVRG4
IC GATE NAND 1CH 2-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | NAND Gate | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74LVC1G14YZTR
IC INVERT SCHMITT 1CH 1IN 4DSBGA
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V |
|
SN74AHCT1G04DBVT
IC INVERTER 1CH 1-INP SOT23-5
|
74AHCT | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 4.5V ~ 5.5V | 8mA, 8mA | 0.8V | 2V |
|
SN74LVC2GU04YEAR
IC INVERTER 2CH 2-INP 6DSBGA
|
74LVC | Tape & Reel (TR) | Obsolete | Inverter | 2 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SN74LVC14APWTG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 24mA, 24mA | 0.15V ~ 0.8V | 1.3V ~ 2V |
|
SN74LVC86ABQAR
4-CHANNEL 2-INPUT 1.1V TO 3.6V X
|
74LVC | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|

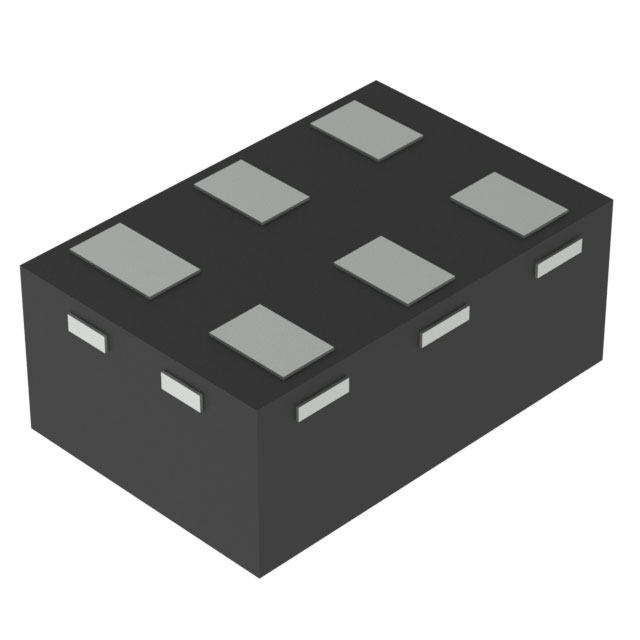

SN74LVC1G04DRYRG4
IC INVERTER 1CH 1-INP 6SON
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V |
|
CD74ACT08MG4
IC GATE AND 4CH 2-INP 14SOIC
|
74ACT | Tube | Discontinued at | AND Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
|
|
74LVC1GU04DBVTG4
IC INVERTER 1CH 1-INP SOT23-5
|
74LVC | Tape & Reel (TR) | Discontinued at | Inverter | 1 | - | 1.65V ~ 5.5V | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V |
|
SN74LVC04APWG4
IC INVERTER 6CH 1-INP 14TSSOP
|
74LVC | Tube | Discontinued at | Inverter | 1 | - | 1.65V ~ 3.6V | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V |
|
SNJ54ALS1010AJ
NAND GATE, ALS SERIES
|
* | Bulk | Active | - | - | - | - | - | - | - |
|
|
SN74ACT32DG4
IC GATE OR 4CH 2-INP 14SOIC
|
74ACT | Bulk | Discontinued at | OR Gate | 2 | - | 4.5V ~ 5.5V | 24mA, 24mA | 0.8V | 2V |
